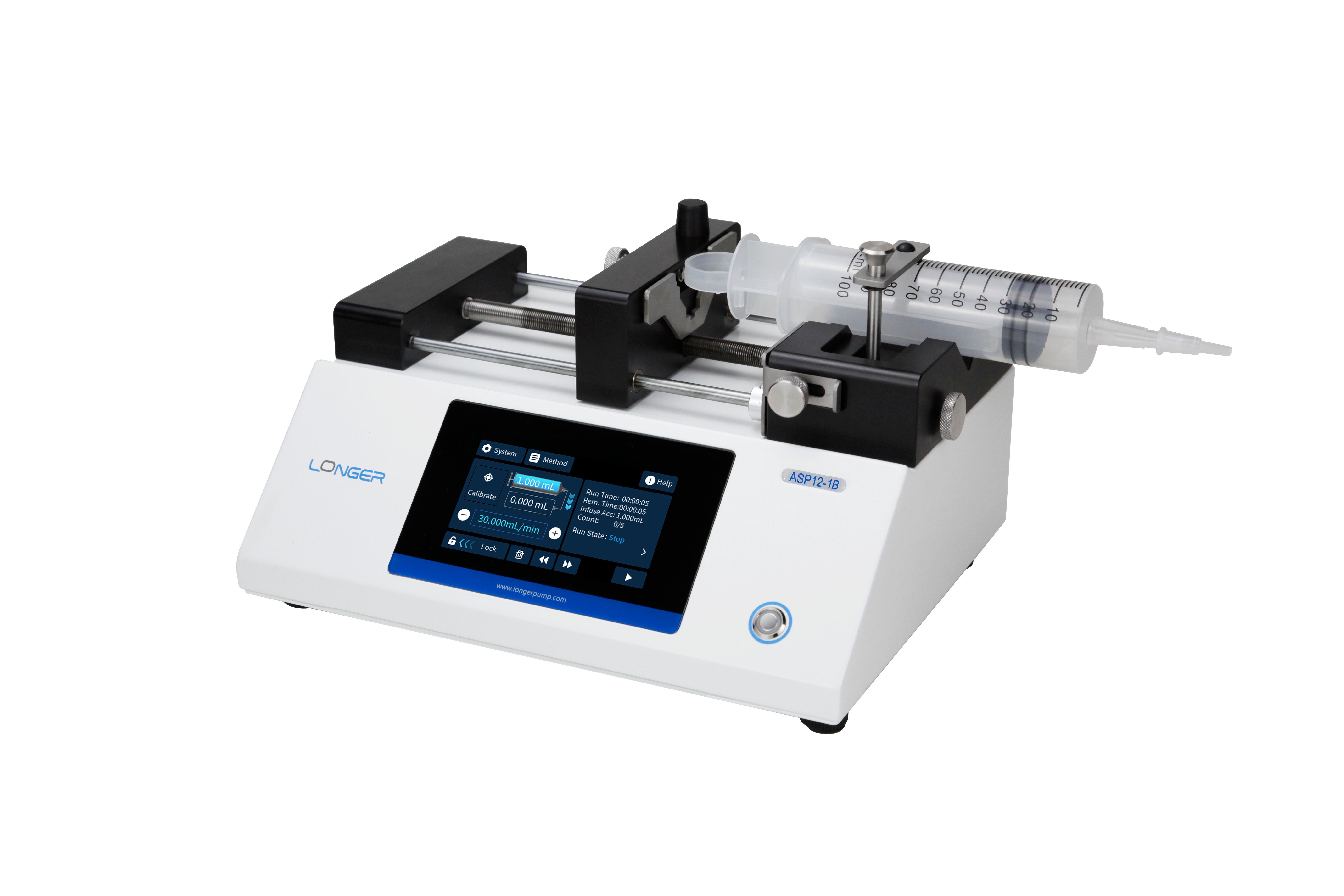

ASP12-1B Laboratory syringe pump with touchscreen and LabVIEW drivers
Number of syringes that can be used: 1
High-resolution LCD touchscreen, easy-to-use.
Adjustable linear force up to 320N ensures the optimal force for different syringe sizes.
Wide flow rate range with real-time flow rate adjustment during operation.
Stable and pulseless flow for microfluid transfer.
LabVIEW drivers and Demos for easy integration into LabVIEW platform.
Supports external signal contorl, communication control (RS485 interface, Modbus RTU protocol), and footswitch control.
Audible beeps, indicator lights, and text prompts provide intuitive pump status notifications.
Flow rate calibration function for the custom syringes can improve the flow accuracy.
Recipe parameters can be saved as presets for quick recall.
about 2-3 weeks
Only %1 left
$ 2,783.00
More Information
Article no
ASP12-1B
Flow Rate
3.3 pl/min - 226.0 ml/min
Configuration
1 Channel
Technical Parameters
Parameters
ASP12-1B
Product Type
Integrated design
Number of Syringes
1
Compatible Syringe Sizes
0.5uL-150mL
Reference Flow Range
0.0033nL/min-226mL/min
Display
4.3 inch color LCD for flow rate and other parameters
Operating Mode
Single infuse，multiple infuse
Programmable Function
N/A
Control Method
Touchscreen control，external control，communication control，footswitch control，LabVIEW control
Maximum Stroke Length
140mm
Stroke Resolution
0.0326um/microstep
Linear Speed Range
0.416um/min-180mm/min
Stroke Control Accuracy
≤±0.35% (When travel≥30% of stroke)
Maximum Linear force
320N (can be set 20%-100%)
External Control Function
Two control inputs: switch signals or level signals for start/stop and emergency stop Two status outputs: can be configured as start/stop; direction or fault alarm
Communication/Interface Control
RS485，Modbus RTU or Longer OEM protocol
Dimensions
280mm*212mm*160mm
Power Supply
Pump: DC24V/10W Adapter: AC90-260V
Operating Temperature
0℃-40℃
Relative Humidity
<85%
Weight
3.65kg
Compatible Syringes
Product Model
ASP11-1A
ASP11-1AP; ASP11-2AP
ASP12-1B; ASP12-2B
Syringe
Syringe ID (mm)
Flow rate for reference
0.5μL
0.10
0.0033nL/min-0.0014mL/min
0.0009nL/min-0.0003mL/min
0.0033nL/min-0.0014mL/min
5μL
0.35
0.040nL/min-0.0173mL/min
0.0108nL/min-0.0034mL/min
0.040nL/min-0.0173mL/min
10μL
0.50
0.0816nL/min-0.0353mL/min
0.0221nL/min-0.0069mL/min
0.0816nL/min-0.0353mL/min
25μL
0.80
0.2090nL/min-0.0904mL/min
0.0566nL/min-0.0178mL/min
0.2090nL/min-0.0904mL/min
50uL
1.10
0.3951nL/min-0.1710mL/min
0.1070nL/min-0.0336mL/min
0.3951nL/min-0.1710mL/min
100uL
1.60
0.8360nL/min-0.3617mL/min
0.2263nL/min-0.0711mL/min
0.8360nL/min-0.3617mL/min
250μL
2.30
1.7275nL/min-0.7475mL/min
0.4676nL/min-0.1470mL/min
1.7275nL/min-0.7475mL/min
500uL
3.25
3.4493nL/min-1.4925mL/min
0.9336nL/min-0.2935mL/min
3.4493nL/min-1.4925mL/min
1mL
4.72
7.2752nL/min-3.1479mL/min
1.9692nL/min-0.6191mL/min
7.2752nL/min-3.1479mL/min
5mL
13.10
56.041nL/min-24.248mL/min
15.169nL/min-4.7689mL/min
56.041nL/min-24.248mL/min
10mL
16.60
89.987nL/min-38.937mL/min
24.357nL/min-7.6575mL/min
89.987nL/min-38.937mL/min
20mL
19.00
117.89nL/min-51.009mL/min
31.909nL/min-10.032mL/min
117.89nL/min-51.009mL/min
30mL
23.00
172.75nL/min-74.748mL/min
46.759nL/min-14.700mL/min
172.75nL/min-74.748mL/min
60mL
29.14
277.30nL/min-119.98mL/min
75.056nL/min-23.597mL/min
277.30nL/min-119.98mL/min
100mL
31.00
313.82nL/min-135.79mL/min
150mL
40.00
522.50nL/min-226.08mL/min
