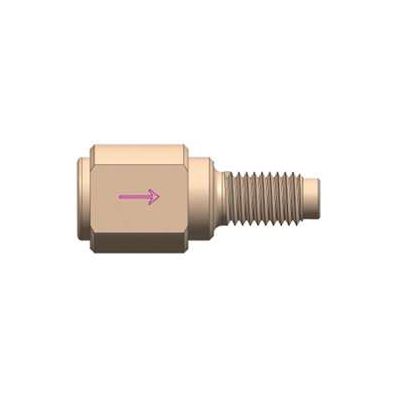

B-JC-100001-050 PEEK Inlet-Check-Valve with O-Ring & Spring - 1/4-28UNF - 0.5mm
- Internal thread: 1/4-28 UNF
- External thread: 1/4-28 UNF
- Channel size: 0.5mm
- Max. pressure: 20 bar
- Cracking pressure: 10 PSI
- Materials: PEEK body, FFKM O-Ring, Spring gold-plate stainless steel
about 2-3 weeks
Only %1 left
Article no
B-JC-100001-050
$ 86.00
| Article no | B-JC-100001-050 |
|---|---|
| Connection thread male 1 | 1/4-28 UNF |
| Connection thread female 1 | 1/4-28 UNF |
| Type | O-ring & spring |
| Colour | Natural |
| Orifice size (mm) | 0,5 |
| Material | PEEK & FFKM & gold-plated stainless steel |
| Opening pressure (min.) | 15PSI |
| Back pressure (max.) | 200bars |
