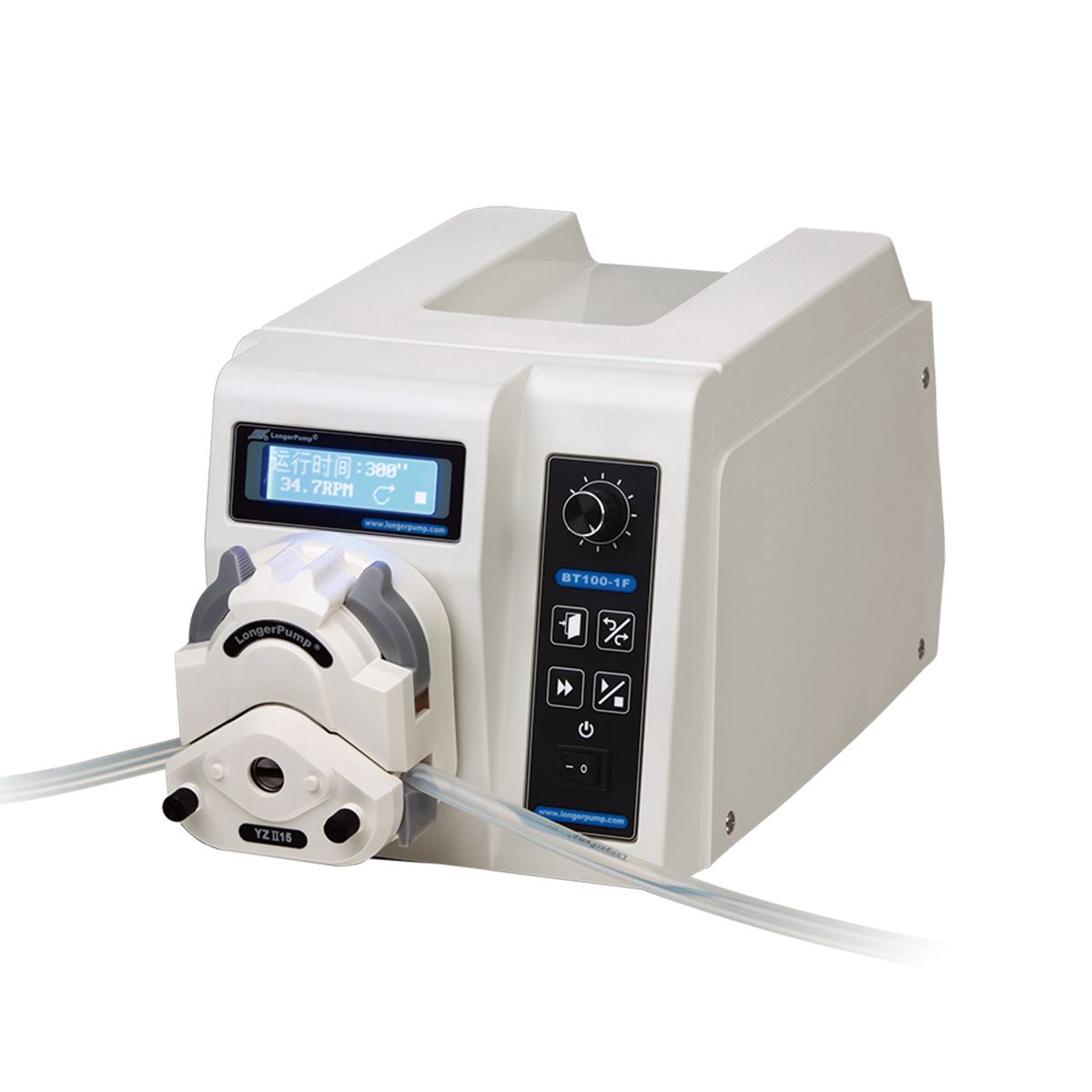

BT100-1F Precise dosing peristaltic pump 0.2 µl/min-500 ml/min
Flow rates：0.0002ml/min-500ml/min
Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Back suction function: 0s - 99.9min, resolution is 0.1s
Max. Number of Channels：4
Adjust speed manually or automatically through analog interface.
Memory function, storing the running parameters automatically
on stock
Article no
BT100-1F
Special Price
$ 904.18
Regular Price
$ 1,004.64
Discount 10%
Tubing
|
Pump head |
Number |
Inner-diameter |
Wall-thickness |
max. Flow rate |
|---|---|---|---|---|
|
YZ1515x. YZII15 |
13#. 14#. 19#. 16#. 25#. 17#. 18# |
0.8 - 7.9 mm |
1.6. 1.7 mm |
6.3µl/min - 366 ml/min |
|
YZ2515x |
15#. 24# |
4.8. 6.4 mm |
2.4 mm |
160µl/min - 266 ml/min |
|
YZII25 |
15#. 24#. 35#. 36# |
4.8 - 9.6 mm |
2.4 mm |
160µl/min - 500 ml/min |
|
DMD15-13-B |
2*13#. 2*14#. 2*19#. 2*16#. 2*25# |
0.8 - 4.8 mm |
1.6. 1.7 mm |
13µl/min - 345 ml/min |
|
DG15-24 |
16#. 25#. 17# |
3.2 - 6.4 mm |
1.6 mm |
81µl/min - 300 ml/min |
|
DG15-28 |
13#. 14# |
0.8 - 1.6 mm |
1.7 mm |
2.0µl/min - 75 ml/min |
|
DG-(1. 2) - 6 Rollen |
≤3.17mm |
0.8 - 1.0 mm |
2.00µl/min - 48 ml/min |
|
|
DG-(1. 2) - 10 Rollen |
≤3.17mm |
0.8 - 1.0 mm |
1.5µl/min - 32 ml/min |
Specifications pump system
|
Flow rates |
0,20µl/min - 500ml/min |
|
Speed |
0.1 to 100 rpm, reversible |
|
Speed precision |
0.1 rpm |
|
Control mode |
Membrane keypad |
|
Display |
3-digit LED displays current rpm |
|
Dispensing volume |
0.01 mL to 9.99 L |
|
Copy number |
0 to 9999, 0 means unlimited cycle. |
|
Pause time |
0.1s-99.9 min, resolution is 0.1s |
|
Communication interface |
RS485 |
|
External control |
Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz |
|
Speed output |
10Hz - 10kHz corresponding to 0.1 - 100 rpm |
|
Power supply |
AC90V - AC260V |
|
Power consumption |
≤ 40 W |
|
Operating condition |
Temperature 0 to 40°C |
|
Relative humidity |
< 80% |
|
Dimensions (L×W×H) |
285 x 207 x 180 (mm) |
|
Drive weight |
3.80 kg |
|
IP rating |
IP 31 |
