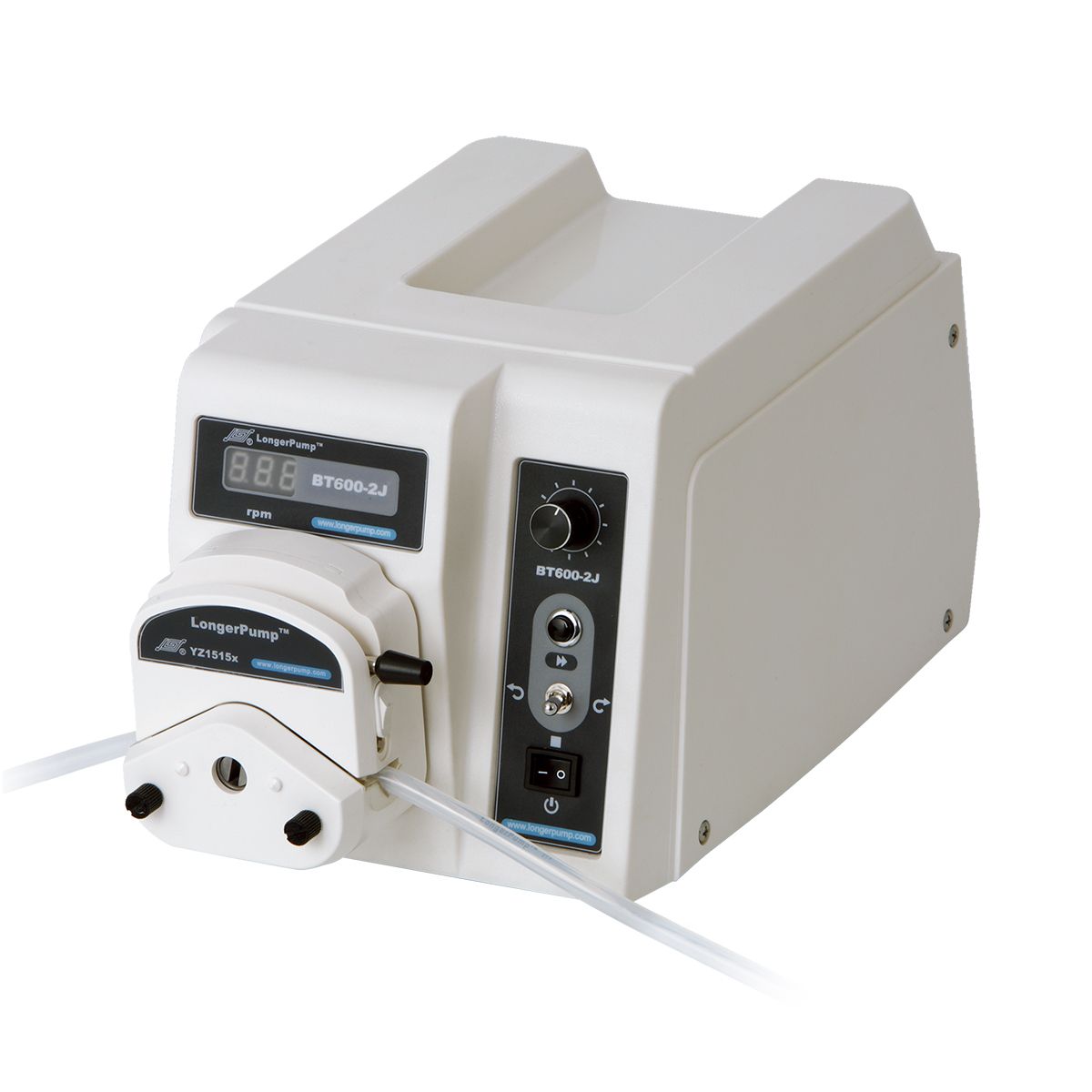

BT600-2J Laboratory peristaltic pump up to 3000 ml/min
Flow rates：63.0 µl/min - 3000 ml/min
Max. Number of Channels：2
Prime button for fast filling and emptying
The pump could be controlled manually through control panel or automatically through external control interface.
Communication function: the pump could be controlled by computer through RS485 interface.
Memory function: Storing the running parameters automatically
on stock
Only %1 left
Article no
BT600-2J
$ 1,320.20
Tubing
|
Pump head |
Number |
Inner-diameter |
Wall-thickness |
max. Flow rate |
|---|---|---|---|---|
|
YZ1515x. YZII15 |
13#. 14#. 19#. 16#. 25#. 17#. 18# |
0.8 - 7.9 mm |
1.6. 1.7 mm |
63.0µl/min - 2200 ml/min |
|
YZ2515x |
15#. 24# |
4.8. 6.4 mm |
2.4 mm |
1.60ml/min - 1600 ml/min |
|
YZII25 |
15#. 24#. 35#. 36# |
4.8 - 9.6 mm |
2.4 mm |
1.60ml/min - 3000 ml/min |
|
DG15-24 |
16#. 25#. 17# |
3.2 - 6.4 mm |
1.6 mm |
0.81ml/min - 1800 ml/min |
Specifications pump system
|
Flow rates |
63.0 µl/min - 3000 ml/min |
|
Speed |
1 to 600 rpm, reversible |
|
Speed precision |
1 rpm |
|
Speed control |
Rotary encoded switch |
|
Display |
3-digit LED displays current speed |
|
Communication interface |
RS485 |
|
External control |
Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz |
|
Power supply |
AC 100V-240 V 50/60 Hz |
|
Power consumption |
≤48 W |
|
Operating condition |
Temperature 0 to 40°C |
|
Relative humidity |
< 80% |
|
Dimensions (L×W×H) |
285×207×180 (mm) |
|
Drive weight |
3.60 kg |
|
IP rating |
IP 31 |
