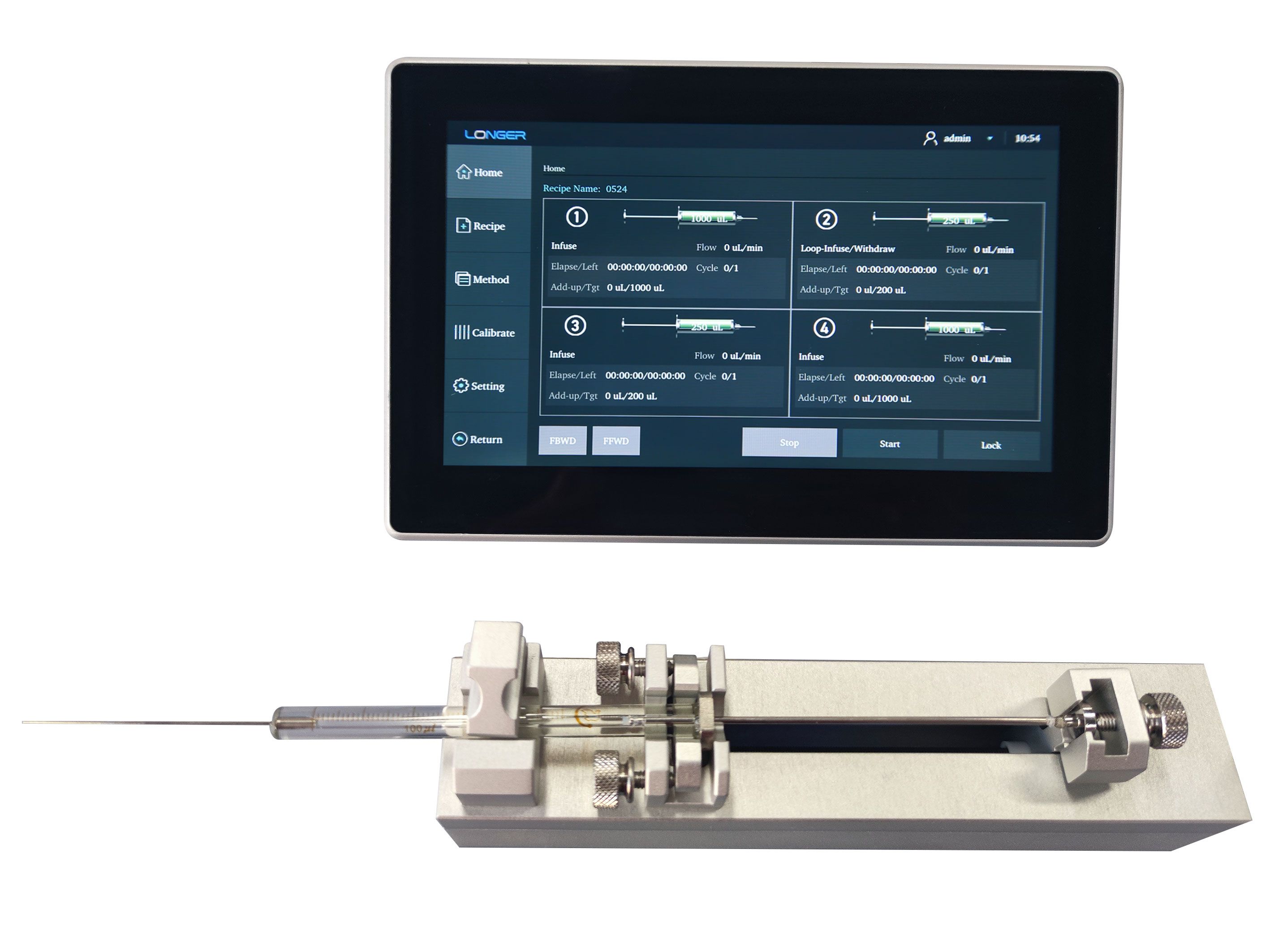

Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl
The image may differ from original
Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl
Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl
Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl
Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl
Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl

dLSP-501S Microfluidic Syringe Pump - High precision and pulseless delivery - 15N - Syringes up to 250µl

  • 7-Zoll-Touchscreen für dLSP 501X
  • Windows PC-Software
  • ohne Steuereinheit

Remote pump drive unit with compact structure and small footprint, ideal for hand-held or clamping devices.

High precision and pulseless delivery, suitable for small liquid volume transfer and handling (starting from 0.0048nL/min). ≤±0.35%(when travel ≥30% of the stroke)

Linear force (Max.): 15N (can be set 20%-100%)

on stock
Only %1 left
Article no
dLSP-501S
$ 1,423.13 Regular Price $ 1,897.50 Discount 25%

You need larger quantities? We would like to make you an individual offer. Request an offer now

  • PLC or computer can control multiple drive units through RS485/ Modbus RTU. Each drive unit can be controlled independently with individual parameters.
  • Parameters can be saved as a method, which can be stored on the controller and imported/exported to a USB flash drive, simplifying the parameter configuration and facilitating parameter sharing between different drive units.
  • Powerful features, including the lock screen function, three-level access management with password protection, log recording, and electronic signatures, ensure the safety, accuracy, and compliance of operations.

Technical Specifications

Work mode Infusion only, withdrawal only, infusion/withdrawal, withdrawal/infusion, programming (on PC software)
Display 7 inch HD LCD
Touch screen controller - Control mode Control 1-4 separated drive units with preset parameters through touch screen controller
PLC/ Computer - Control mode RS485 communication interface, Modbus RTU, 1 group consists of up to 8 drive units, 1 computer can independently control up to 5 groups
Stroke of the drive unit 70mm
Pusher advance per microstep 0.095um/ustep
Linear speed 0.6096um/min-182.88mm/min
Linear speed resolution 0.6096um/min
Linear travel accuracy ≤±0.35%(when travel≥30% of the stroke)
Linear travel CV 0.03% (rated travel)
Linear force (Rated) 15N (the force can be set 20%-100%)
Syringe 0.5uL-250uL (built-in manufacturer, or user-defined)
Flow rate calibrate Calibrate the user-defined syringe for better flow rate /dispensing volume accuracy and precision
Parameter method Up to 100 parameter methods can be stored on the controller and can be imported/exported to USB flash drive
Programming function Parameter configured based on work flow on PC software: infusion, withdrawal, delay, repeat, up to 16 steps
Screen lock Prevent misoperationg
User access control Three levels of user access (administrator, developer, operator), each user can have an exclusive password
Log record Record the pump operation history, and can be exported to a USB flash drive
Electronic signature There are electronic signature on the log record for FDA 21CFR Part11 compliance
Pump state when power up The default state is stop, can be set to continue to run through communication commands
Fast forward/backward Infuse or withdraw liquid at full speed
Controller dimensions (L X W X H) 187mm*123mm*39mm
Controller weight 0.6kg
Drive unit dimensions (L X W X H) 170mm*35mm*58mm
Drive unit weight 0.31kg
Power Supply AC 90V-260V/10W

Syringes

Syringe (μL) Syringe ID(mm) Flow rate for reference
0.5 0.10 0.0048nL/min-1.435uL/min
1 0.15 0.0108nL/min-3.230uL/min
2 0.20 0.0191nL/min-5.742uL/min
5 0.35 0.0586nL/min-17.586uL/min
10 0.50 0.1196nL/min-35.890uL/min
25 0.80 0.3063nL/min-91.879uL/min
50 1.10 0.5790nL/min-173.709uL/min
100 1.46 1.0200nL/min-306.014uL/min
250 2.30 2.5315nL/min-759.437uL/min
