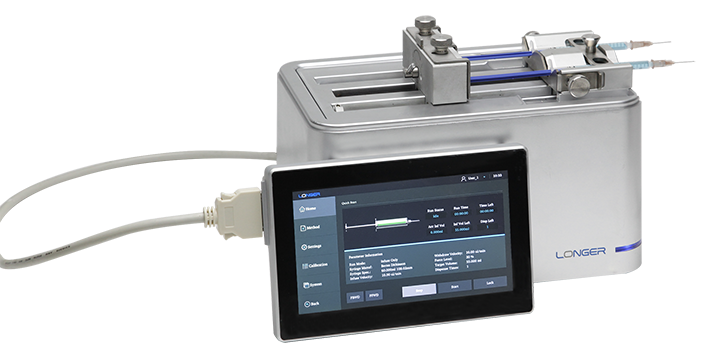

dLSP510 Digital Lab Syringe Pump - 1 Channel
Accept Syringe Volume: 0.5µL- 60 mL
Linear Rate (µm/min-mm/min): 0.0833 - 180
Ethernet and wireless communication (WLAN/Bluetooth) integrated.
An optional PC software and Android app enable remote control and monitoring.
Ideal for microfluidic and electrospinning applications due to the high precision.
7" touchscreen display with intuitive graphical user interface included.
Custom parameters can be configured quickly and parameter methods can be saved.
about 2-3 weeks
Only %1 left
Article no
dLSP510
$ 2,639.25
Regular Price
$ 2,932.50
Discount 10%
Spezifikations
| Work mode | Infusion only, withdrawal only, infusion/withdrawal, withdrawal/ infusion, auto repeated, programming (on dedicated PC software) |
| Number of channel | 1 |
| Pusher advance per microstep | 0.03255μm/μstep |
| Linear speed | 0.0833μm/min-180mm/min |
| Step speed | 23.4375 sec/μstep-10.85 μsec/μstep |
| Linear travel accuracy (Rated) | ±0.5% |
| Linear travel CV(Rated) | ±0.05% |
| Linear force (Rated) | 40lbs/18kg @ 100% force selection |
| Motor and drive | 1.8° step motor with 1/64 microstepping |
| Syringe | 0.5uL-60mL |
| User-defined syringe | Travel≤108mm |
| OD≤31.5mm | |
| Display | 7Inch, 1024x600，IPS HD LCD (optional) |
| Language | Chinese or English, set as needed |
| Control mode | Tooch screen control, dedicated PC or Android App control，footswitch control，RS485 communication control |
| Interface | RS485(optional), USB-B,USB-A,Wifi, bluetooth, Ethernet，footswitch |
| 3 outputs- solid state relay signal，2 inputs-switch signal or TTL signal，4-20mA signal(optional) | |
| Wireless connectivity(optional) | Wifi，bluetooth |
| Programming function | Parameter configured based on work flow: constant，ramp，loop，delay，repeat，I/O output trigger，I/O event input trigger，tooch screen trigger |
| Calibration | Improve flow rate/ dispensing volume precision and accuracy |
| Parameter method | Parameter methods can be stored and easily recalled |
| Real time clock | Date and time can be set |
| Audible alarm | For keypad clicks, end of run, near end of run, power on, motor stall, calibration reminder, etc. |
| Voice reminder | N/A |
| Intelligent diagnosis | N/A |
| Screen lock | To prevent misoperation |
| User access control | Three levels of user accesses(administrator，developer，operator)，in line with safety management requirement(21CFR Part 11) |
| Predictive maintenance | Real-time monitoring of pump running status providing information such as alarms, regular maintenance, predictive maintenance |
| Log record | Record the complete operation history of the pump, and can be exported directly |
| Electronic signature and audit trail | N/A |
| Support 3Q(IQ/OQ/PQ) | Meet GMP requirement |
| EMC | CE (TUV) certified |
| Deminsion(L*W*H) | Drive unit: 260mm*185mm*180mm，Controller: 190mm*123mm*33mm |
| Power supply | AC 100V-240V/30W 50/60Hz |
| Operating condition | Temperature: 5℃-40℃, Relative humidity<85% |
| IP rating | IP31 |
| Weight | Drive unit: 3.5kg |
| Controller: 0.4kg |
Syringes
| Product Model (Product Code) | dLSP510 dLSP520 dLSP540 dLSP5A0 |
dLSP510 Pro dLSP520 Pro |
||||||
| Syringe | Syringe ID (mm) | Reference flow rate (nL/min-mL/min) | ||||||
| 0.5ul | 0.1 | 0.0007-0.0014 | 0.0003-0.0007 | |||||
| 5ul | 0.35 | 0.008-0.017 | 0.004-0.008 | |||||
| 10ul | 0.5 | 0.016-0.035 | 0.008-0.017 | |||||
| 25ul | 0.8 | 0.042-0.090 | 0.020-0.043 | |||||
| 50ul | 1.1 | 0.079-0.171 | 0.038-0.082 | |||||
| 100ul | 1.6 | 0.167-0.362 | 0.080-0.174 | |||||
| 500ul | 3.25 | 0.691-1.493 | 0.332-0.717 | |||||
| 1ml | 4.72 | 1.458-3.150 | 0.700-1.512 | |||||
| 2ml | 9 | 5.299-11.451 | 2.545-5.497 | |||||
| 5ml | 13.1 | 11.227-24.261 | 5.391-11.645 | |||||
| 10ml | 16.6 | 18.028-38.956 | 8.657-18.699 | |||||
| 20ml | 19 | 23.618-51.035 | 11.341-24.497 | |||||
| 30ml | 23 | 34.609-74.786 | 16.619-35.897 | |||||
| 60ml (510 series) | 29.14 | 55.554-120.044 | 26.677-57.621 | |||||
