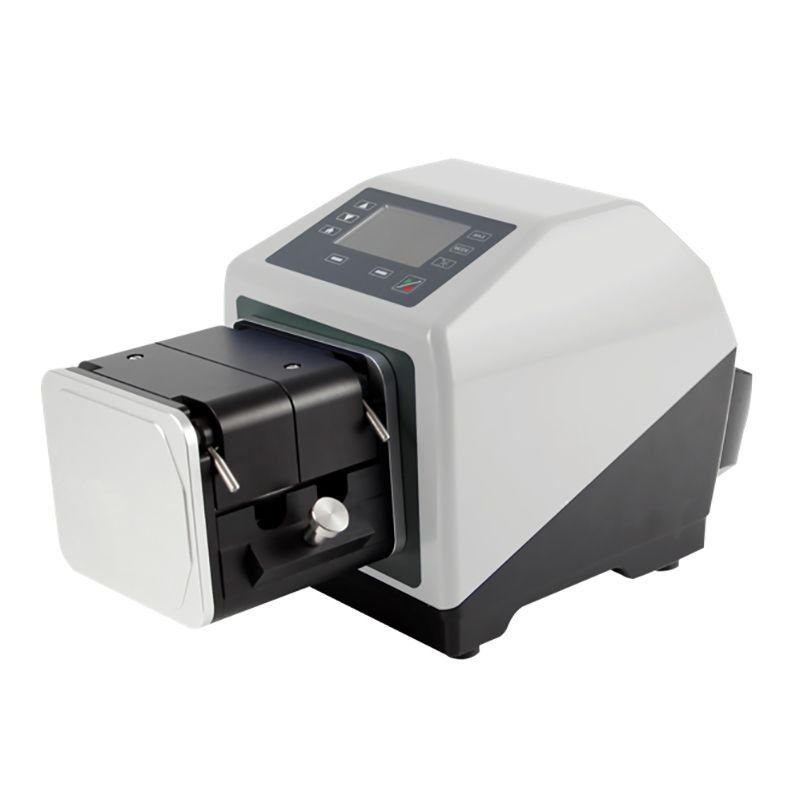

GP01 dPOFLEX Industrial peristaltic pump for pharmaceutical and biotechnology IP66 - Cast aluminum
Designed for biopharmaceutical and industrial applications with a wide flow rate range from 1.1 mL/min to 17 L/min
CE and UKCA certified
IP66 protection class for wet and dusty environments
Meets 21CFR Part 11 and GMP laboratory requirements through three-level user authority management with electronic signature and audit trail functions
Supports fieldbus communication control, digital & analog signal control
Integration of multiple sensors: liquid leakage sensor, open-head sensor and flow sensor, to realize plannable maintenance intervals
$ 4,537.50
Regular Price
$ 6,050.00
Discount 25%
More Information
Article no
GP01
Configuration
Housing cast aluminium
Type
265 rpm
Specifications pump system
Pump drive model
dPOFLEX GP01
Housing material
Cast aluminum
Speed range
0.1rpm-265rpm, CW/CCW
Speed resolution
0.1rpm
Display
4.3 inch LCD (English)
Clock function
Year/month/day/hour/minute can be set, hours and minutes are displayed on the running screen
Work mode
Flow rate mode, dispensing mode, calibration mode
Flow rate mode
Pump runs continuously at the set flow rate, and displays flow rate and pump speed on the screen
Flow rate setting range
1.1ml/min-17.0L/min （depending on pump head and tubing）
Dispensing mode
Pump repeats the dispensing at set volume, cycles and interval time and displays single volume, dispensed volume, dispensed cycles/target cycles on screen
Volume of single dispense
1.0mL-274.9L（depending on pump head and tubing）
Dispensing cycles
1-9999 (0 for unlimited)
Interval time
5s-9999s
Calibration function
Improve the flow rate and dispensing volume accuracy
Control mode
Keypad control, external signal control and communication control
Communication control
RS485 or TCP/IP(optional) interface, Modbus RTU, Industrial Ethernet(optional), Profibus DP (optional)
External control
Speed control: 0-10V, 4-20mA
Start/stop, direction control
5V-24V logic level signal or relay signal (dry contact)
Status output
Pump Speed 0-10V, 4-20mA, frequency signal (optional)
Open head sensor
Pump will stop when pump head is open for enhanced user safety
Status when power up
Stop
Keypad lock function
Enable the keypad lock function to lock the keypad automatically after 20s standby, (start/stop key will not be locked)
Tubing leak detection
Detect the tubing leak and give alarm (optional)
Flow rate measurement
Measure the flow rate by connecting flow meter (optional)
User access control
Three levels of user accesses (administrator, technician, operator)
Log record
Record 90 days operation history and can be exported directly
Support IQ/OQ
Meet GMP requirement
Certificate
CE, UKCA
Deminsion(LxWxH)
260x407x298mm
Power supply
AC100-240V 50/60Hz
Operating condition
Temperature: 5°C-40°C relative humidity≤100%
IP rating
IP66
Weight (drive only)
approx. 17.6kg
Tubing
pump head
number
inner diameter
wall thickness
max. flow rate
weight
GPH01
26#, 73#, 82#, 184#
6.4 - 15.9 mm
3.3 mm
0.011 l/min - 15 l/min
ca. 4.1 kg
GPH02
186#, 188#
12.0. 17.0 mm
4.0 mm
0.036 l/min - 17 l/min
ca. 4.0 kg
GPH03
186#, 188#
12.0. 17.0 mm
4.0 mm
0.032 l/min - 14 l/min
ca. 5.4 kg
LPH01
185#, 186#, 187#
8.0 - 16.0 mm
4.0 mm
0.017 l/min - 13.5 l/min
ca. 5.3 kg
