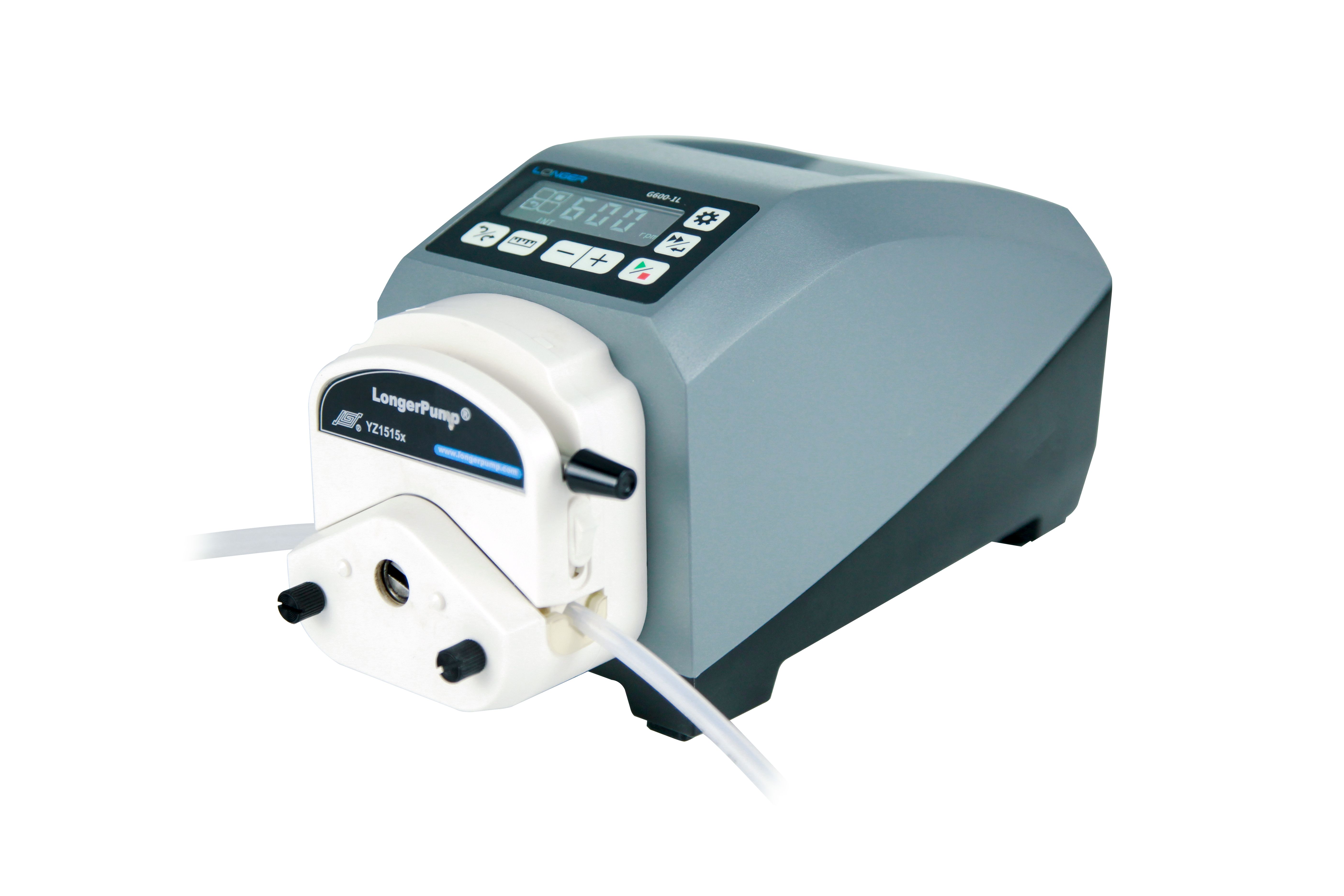

G600-1L Precise laboratory peristaltic pump up to 3250 ml/min - IP66 Incubator
- With die-cast aluminum housing and powder coating, the pump has good corrosive resistance and could be used in corrosive environment.
- With high IP rating (IP 66), the pump could be used in wet and dusty environment.
- Versatile work modes including continuous, timed and volume transfer to suit diverse applications
Flow rates: 0-3250 ml/min
Max. Number of Channels: 1
Suitable for usage in incubator.
on stock
Only %1 left
Article no
G600-1L
$ 1,850.07
Regular Price
$ 2,466.75
Discount 25%
Tubing & pump heads
| Pump Head | Tubing | Max Flow Rate Reference (mL/min) | |
| BPH01 | 13#,14#,19#,16#,25# | 530(@600rpm intermittent) | |
| YZ1515x, YZII15 | 13#,14#,19#,16#,25#,17#,18# | 2380 | |
| YZ2515x | 15#, 24# | 1730 | |
| YZII25 | 15#, 24#, 35#, 36# | 3250 | |
| FG15-13 | 13#,14#,19#,16#,25#,17#,18# | 2600 | |
| FG25-13 | 15#, 24# | 2380 | |
| DMD15-13 | 2x13#, 2x14#, 2x19#, 2x16#, 2x25# | 2500 | |
| DG15-24 | 16#, 25#, 17# | 1900 (single channel) | |
| DG15-28 | 13#, 14# ID≤ 3.17mm，wall thickness: 1mm | 75 (single channel, speed≤100rpm） | |
| DG-(1,2,4,6,8) 6 rollers | ID≤ 3.17mm，Wall thickness: 0.8-1mm | 48 (single channel, speed≤100rpm） | |
| DG-(1,2,4) 10 rollers | ID≤ 3.17mm，Wall thickness: 0.8-1mm | 32 single channel, speed≤100rpm） | |
Specifications pump system
| Speed range | 0, 0.01-650 (rpm) | |
| Speed resolution | 0.01rpm（＜10rpm） 0.1rpm (10rpm≤speed＜100rpm) 1rpm (100rpm≤speed≤Max speed) |
|
| Flow rate range | 0.15uL/min-3250mL/min | |
| Display | LCD for speed, flow rate, running time, dispensed volume, and other setting parameters | |
| Work mode | continuous transfer, timed transfer, volume transfer | |
| Calibration | Improve the flow rate and dispensing volume accuracy | |
| Control mode | Keypad control, footswitch control, external signal control and communication control | |
| External control | Start/stop control, direction control: logic level signal or switch signal (dry contact), momentary or maintained trigger mode can be configured Speed control: 0-5V/0-10V/4-20mA/0-10kHz with uniform interface, speed range/signal range can be configured |
|
| Communication control | RS485 interface, Modbus RTU and Longer Pump OEM protocol，communication parameters can be configured | |
| Keypad lock | Keypad can be locked to prevent misoperation, the delay time before lock can be configured | |
| Parameter memory | Running parameters and system parameters can be saved automatically | |
| Pump status when powered up | The pump status when powered up can be set to stop or the status before power-off | |
| Prime | Fast filling or emptying at full speed | |
| Certificate | CE, UKCA EMC: EN IEC61000-6-2:2019 EN IEC61000-6-4:2019 LVD: EN 61010-1:2010/A1:2019 EN 61010-1:2010/A1:2019 |
|
| Dimension (LxWxH) | 240*142*152(mm) | |
| Power supply | AC100-240V 50Hz/60Hz | |
| Power consumption | 60W | |
| Working condition | Environment temperature: 0℃～40℃， relative humidity: 10%～90% | |
| IP rating | IP66 | |
| Weight | 3.75kg | |
