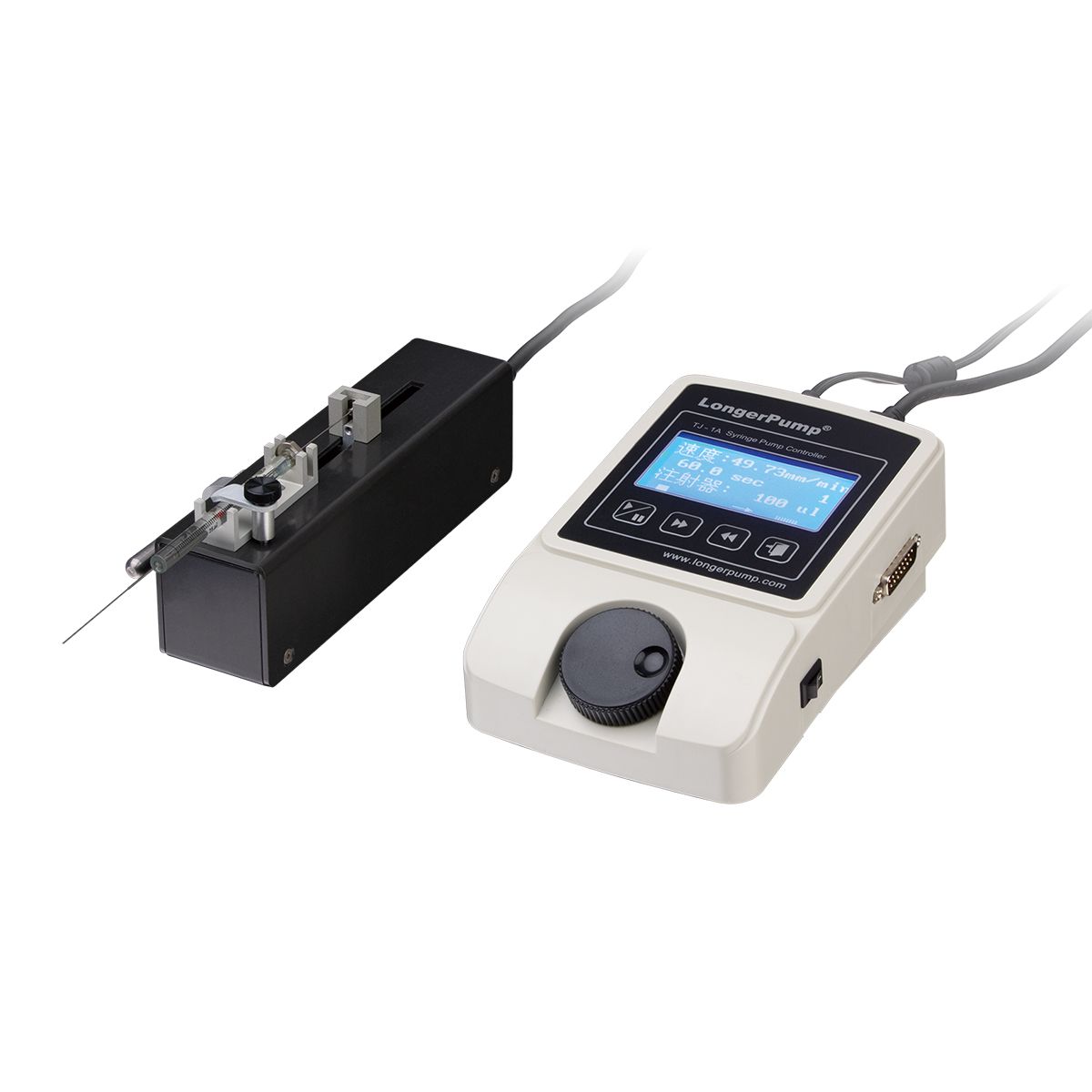

TJ-2A-L0107-2A High-precision single channel micro syringe pump with external control for syringes with a capacity of 5µl to 1ml
Flow rates: 0.764nl/min - 1.325ml/min
Channels: 1
This single-channel microsyringe pump is highly precise and can be operated in both infusion and withdrawal modes. The compact size with easy installation and operation enables high-precision liquid dispensing, especially for laboratory applications. The features of precise distance control and wide linear speed range (7.94 µm/min - 79.4 mm/min) can meet versatile requirements. Due to its installation flexibility, this pump can be easily used in micromanipulators and stereotactic instruments for various biological research applications.
about 2-3 weeks
Only %1 left
Article no
TJ-2A-L0107-2A
Functions
- Working mode: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous
- User-defined glass Syringe: Save 4 inner diameters of user-defined glass syringe barrel
- Linear force output: Full stroke > 20 N
- Memory functon: Select resume operaton or remain stopped when power returns after an interruption
- Signal output: Start/Stop output, cw/ccw output (Open Collector)
- Calibration: Acquire accurate volume through calibration
- Fast forward & fast reverse: Infusion or filling at the max. Speed
Spezifikationen
| Max. infusion distance | 70 mm |
| Acceptable glass syringe | 5 µL - 1000 µL |
| Linear speed | 7.94 µm/min - 79.4 mm/min |
| Adjusting resolution | 7.94 µm/min |
| Distance resolution | 0.165 µm |
| Linear force | >20 N |
| Setting mode | Membrane keypad and rotary encoded switch |
| Accuracy | < +/0.5% error in the condition of > 30% of max. infusion distance |
| Display | 128 x 64 graphic LCD |
| External control | Start/Stop control, fast forward control, fast reverse control |
| Communication interface | RS 485 |
| Power supply | AC 100 - 240V or DC 12 V |
| Power consumption | < =10 W |
| Operating condition | Temperature 0 40 °C |
| Controller dimensions (L x W x H) | 170 x 108 x 65 (mm) |
| Controller weight | 0.5 Kg |
| Drive Unit dimensions (L x W x H) | 180 x 46 x 78 (mm) |
| Drive Unit weight | 0.6 Kg |
| IP rating | IP 21 |
Spritzen
| Syringe (μl) | Syringe ID (mm) | Flow Rate (nl/min-μl/min) |
| 5 | 0.35 | 0.764 - 7.64 |
| 10 | 0.50 | 1.559 - 15.59 |
| 25 | 0.80 | 3.991 - 39.91 |
| 50 | 1.10 | 7.546 - 75.46 |
| 100 | 1.60 | 15.96 - 159.6 |
| 250 | 2.30 | 32.99 - 329.9 |
| 500 | 3.25 | 65.87 - 658.7 |
| 1000 | 4.61 | 132.5 - 1325 |
