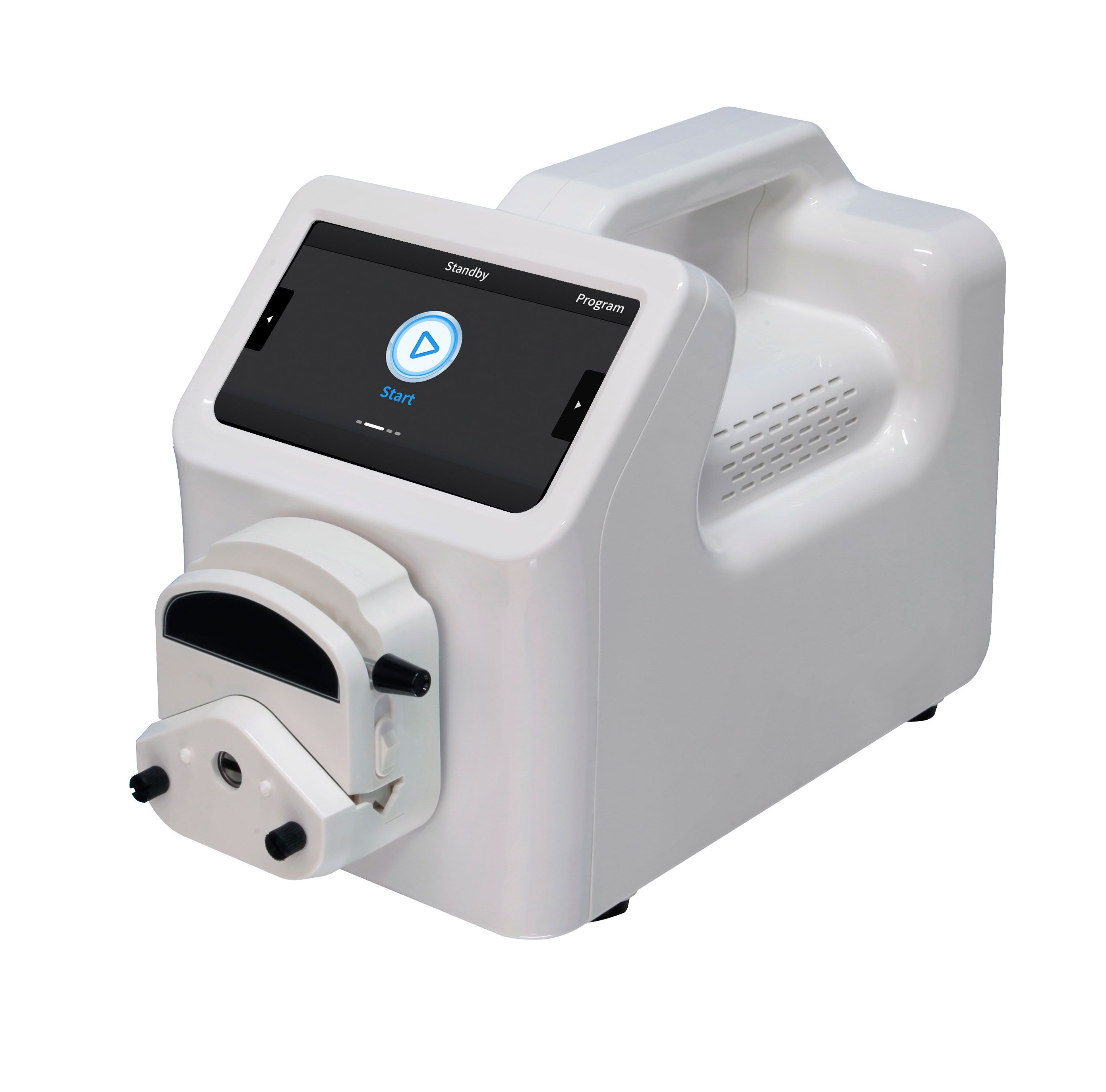

L100-1F Precise laboratory peristaltic pump 0,15 µl/min–500 ml/min - Many functions, large display
Speed：0.1-100rpm
CW/CCW
Speed resolution：0.1rpm resolution
Flow rate：0.15µl/min-500ml/min
Power Consumption：35W
on stock
Only %1 left
Article no
L100-1F
$ 1,935.45
Regular Price
$ 2,150.50
Discount 10%
7 inch color display
7 inch color display, full touch screen and intuitive graphic interface, provide easy-to-use operations.
- 7 inch color display shows more information simultaneously
- Intuitive graphic interface and full touch screen quickly set up application process
7 inch color display
Pump parameters programmable
Customize parameters by programming, and the parameter programs can be stored and easily recalled.
- Parameters are defined by programming
- 7 parameter programs of up to 10 steps can be configured and stored
- Program name can be defined by letters and numbers for identification and easy recall
- Preset external control program is for remote control through external signal
Pump parameters programmable
Function modules and intelligent algorithms
Multiple function modules and intelligent algorithms are designed for a wide variety of applications, including routine and multi-step complex applications
- 9 running control modules: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing. ramp down dispensing
- 8 logic control modules: direction, delay, event trigger，status output, pause, jump, loop, stop
- Each running control module can be used independently for simple routine application
- Configure multi-step program with multiple modules for complex application
9 running control modules
8 logic control modules
8 logic control modules display
Pump control
Pump can be controlled through touch screen,foot switch,analog signal and communication, combined with a variety of interfaces (USB,RJ11,DB9 etc.) for easy system connection.
Pump control
Tubing & pump heads
|
Pump head |
Number |
Inner-diameter |
Wall-thickness |
max. Flow rate |
Weight |
|---|---|---|---|---|---|
|
YZ1515x, YZII15 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0,8 - 7,9 mm |
1,6, 1,7 mm |
6,3µl/min - 366 ml/min |
ca. 5,4 kg |
|
YZ2515x |
15#, 24# |
4,8, 6,4 mm |
2,4 mm |
160µl/min - 266 ml/min |
ca. 5,4 kg |
|
YZII25 |
15#, 24#, 35#, 36# |
4,8 - 9,6 mm |
2,4 mm |
160µ/min - 500 ml/min |
ca. 5,4 kg |
|
FG15-13 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0,8 - 7,9 mm |
1,6, 1,7 mm |
6,3µl/min - 400 ml/min |
ca. 5,3 kg |
|
FG25-13 |
15#, 24# |
4,8, 6,4 mm |
2,4 mm |
228µl/min - 366 ml/min |
ca, 5,3 kg |
|
DMD15-13-B |
2*13#, 2*14#, 2*19#, 2*16#, 2*25# |
0,8 - 4,8 mm |
1,6, 1,7 mm |
13µl/min - 345 ml/min |
ca, 5,4 kg |
|
DG15-24 |
16#, 25#, 17# |
3,2 - 6,4 mm |
1,6 mm |
81µl/min - 266 ml/min |
ca. 5,8 kg |
|
DG15-28 |
13#, 14# |
0,8 - 1,6 mm |
1,7 mm |
0,21µl/min - 38 ml/min |
ca. 5,7 kg |
|
DG-(1, 2, 4, 6, 8) - 6 Rollen |
≤3,17mm |
0,8 - 1,0 mm |
0,20µl/min - 48 ml/min |
ca. 5,2 - 5,6 kg |
|
|
DG-(1, 2, 4) - 10 Rollen |
≤3,17mm |
0,8 - 1,0 mm |
0,16µl/min - 32 ml/min |
ca. 5,2 - 5,6 kg |
Specifications pump system
|
Flow volume |
0.15µl/min - 500ml/min |
|
Speed |
0.1-100rpm |
|
Dispensing volume setting range |
0.001uL-9999L |
|
Calibration |
Improve the flow rate and dispensing volume accuracy. (accuracy of ±2% with calibration) |
|
Interval time setting range |
0.5s-9000s |
|
Dispensing cycle setting range |
1-99999(0 for unlimited) |
|
Dispensing time setting range |
0.5s-9000s (0s for continuous transfer without time limit) |
|
Delay time setting range |
0.5s-9000s |
|
Display |
7Inch 1024*600 color LCD |
|
Language |
English |
|
Control mode |
Touch screen control, footswitch control, external signal control and communication control |
|
Work mode |
Programming |
|
Programming function |
Running control module |
|
Logic contol module |
direction, delay, event trigger, status output, pause, jump, loop, stop |
|
Configure |
multi-step program with multiple modules for complex application |
|
External control |
Start/stop control, direction control |
|
Speed control |
0-5V, 0-10V, 4-20mA or 0-10kHz with uniform interface, max speed can be set. |
|
Communication control |
USB or RS485(RJ11) interface, Modbus protocol, multiple baud rate (1200/ 2400/ 4800/ 9600/ 19200/ 38400bps) |
|
Status output |
Output voltage level signals to indicate pump running status, direction status, and other custom status. |
|
Parameter programs |
7 parameter programs can be stored and easily recalled |
|
Delayed start |
Pump can start running at desired time |
|
Back suction |
Antidrip through setting back suction angle and delay time for high dispensing accuracy |
|
Prime |
Fast filling and emptying at full speed |
|
EMC |
Comply with EMC Directive 2014/30/EU |
|
Dimension (L*W*H) |
294mm×180mm×235(mm) |
|
Power supply |
AC196V-242V, 50/60Hz |
|
Operating temperature |
0°C-40°C |
|
Relative humidity |
<80% |
|
IP rating |
IP31 |
|
Weight |
5 - 6kg |
