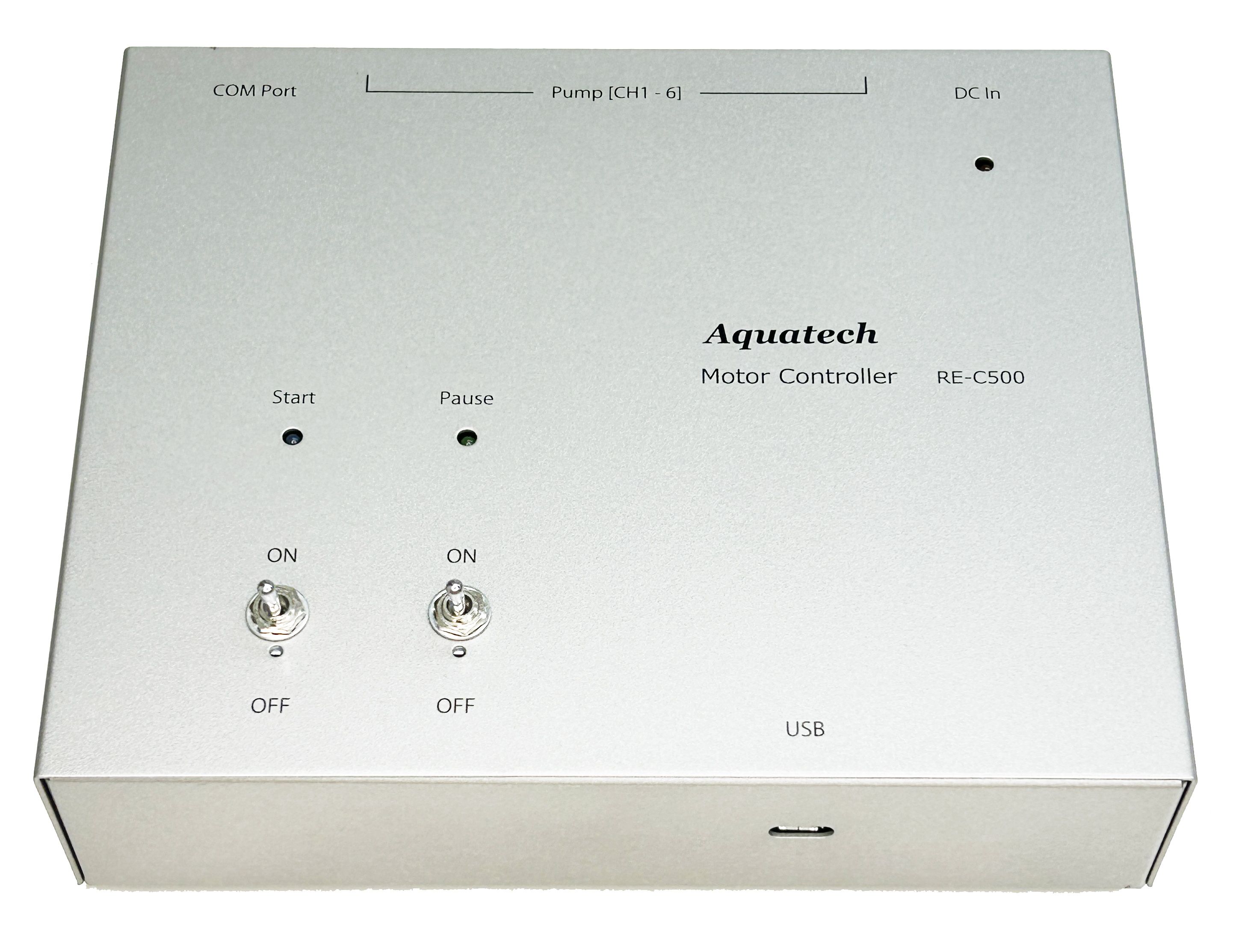

RE-C500 Programmable Stepper Motor Controller RingPumps
For Research Use Only (RUO) - Laboratory Instrument
Stepper motor controller for RP-HX, RP-TX, RP-QIIB/C and RP-QIIIB/C series.
A PC connected to the RE-C500 can control various pump operations for up to 6 pumps.
Various pump operation sequences can be programmed.
The program data of the operation sequence can be saved in RE-C500 and the pump can be operated without connecting to the PC.
When connecting multiple pumps, different types of pumps can be mixed.
about 3-4 weeks
Article no
RE-C500
Special Price
$ 1,481.63
Regular Price
$ 1,852.03
Discount 20%
Application Example RE-C500
RE-C500 Example 6 - RP-Q Stepper Motor Pumps
Spezifications
|
Model No. |
RE-C500: Master |
|
Applicable pumps |
RP-HX series, RP-TX series, RP-QIIB/QIIC, RP-QIIIB/QIIIC |
|
Power source |
DC5V 3A (AC adapter included) |
|
Driving method |
Bipolar, constant voltage |
|
Excitation mode |
1/4 micro-step driving |
|
Motor driving voltage |
RP-QIIIB/QIIIC, RP-QIIIB/QIIIC : 3.0V |
|
Dimensions |
180 x 150 x 42 mm |
|
Accessories RE-C500 AC adapter |
(Input : AC100-240V 50/60Hz, Output : DC5V 3A), |
