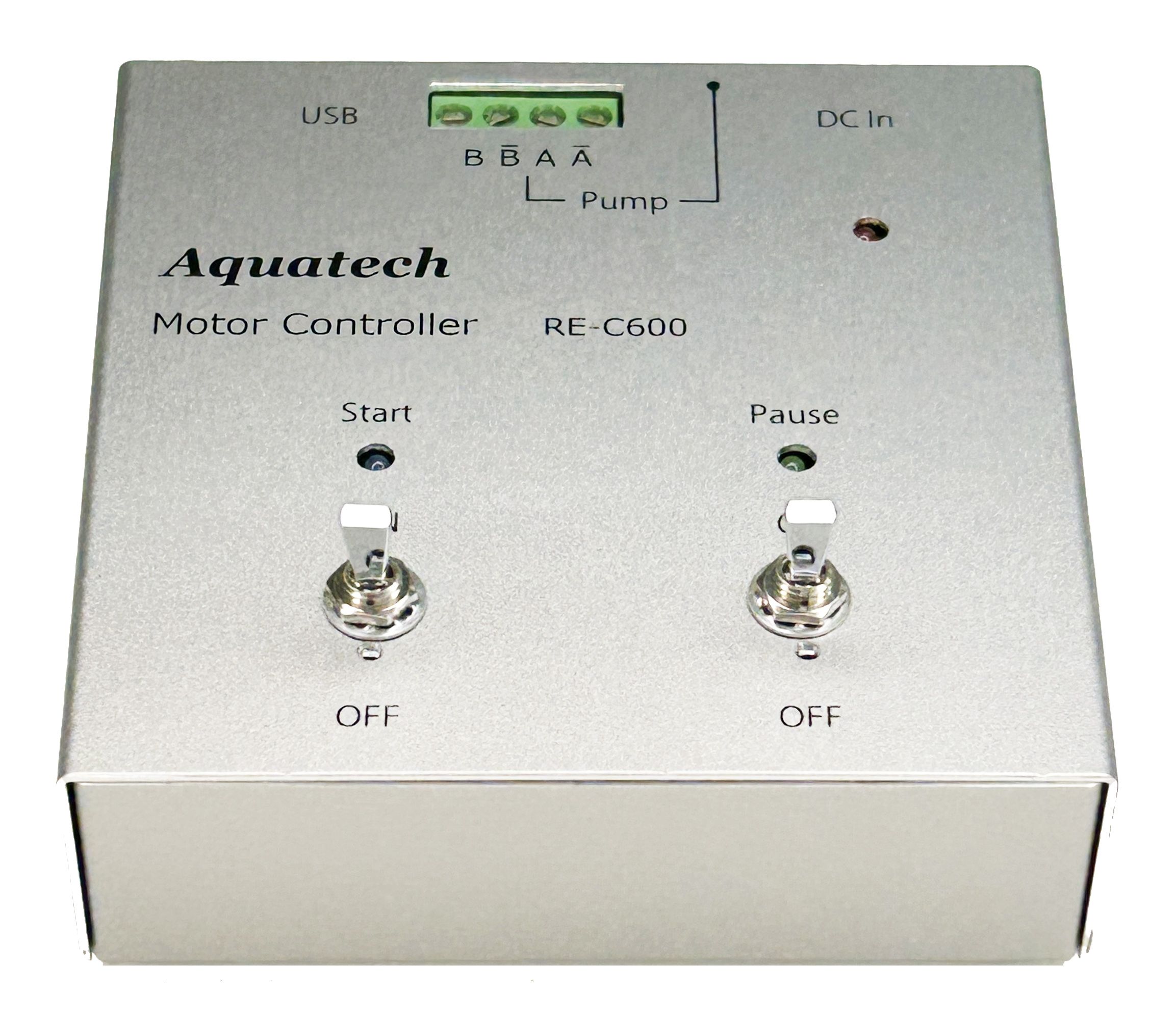

RE-C600 Programmable Stepper Motor Controller
For Research Use Only (RUO) - Laboratory Instrument
Stepper motor controller for one pump of series RP-HX, RP-TX, RP-QIIB/C and RP-QIIIB/C.
Various pump operation sequences can be programmed using a PC connected to the RE-C600.
The pump can be stopped at a specified number of revolutions up to 30 revolutions, and a fixed discharge volume can be performed at a specified multiple of the discharge volume per revolution. (Discharge volume data for one rotation is attached to the pump)
The program data of the operation sequence can be saved in RE-C600 and the pump can be operated without connecting to the PC.
about 3-4 weeks
Article no
RE-C600
Special Price
$ 666.74
Regular Price
$ 833.41
Discount 20%
Application example RE-C600
RE-C600 Example RP-Q Stepper Motor Pump
Spezifications
|
Model No. |
RE-C600 |
|
Applicable pumps |
RP-HX series, RP-TX series, RP-QIIB/QIIC, RP-QIIIB/QIIIC |
|
Power source |
DC5V 1A (AC adapter included) |
|
Driving method |
Bipolar constant voltage |
|
Excitation mode |
1/4 micro-step driving |
|
Motor driving voltage |
RP-QIIB/QIIC, RP-QIIIB/QIIIC : 3.0V |
|
RP-HX, RP-TX : 2.6V |
|
|
Dimensions |
100 x 100 x 34 mm |
|
Accessories |
AC adapter (Input : AC100-240V 50/60Hz, Output : DC5V 1A), |
