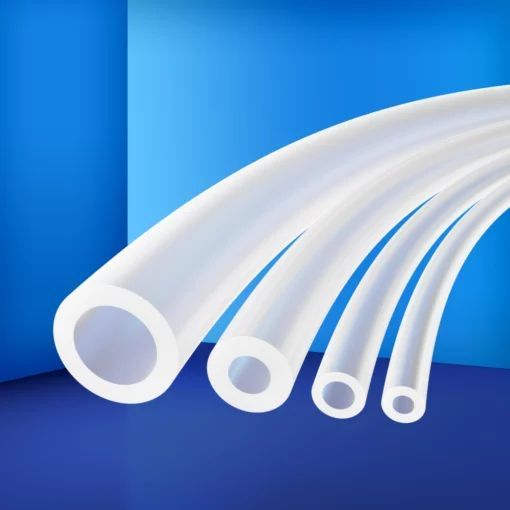

TPE135-.5-1.5 TPE Shore-A 68 Peristaltic Pump Tubing 1/32" ID x 3/32" OD - 15m
TPE-135 tubings with Shore A 68 are ideal for liquid transfer and have been specially developed for the usage in peristaltic pumps when a flexible tube is required.
Incredibly flexible with remarkable resilience and bend radius.
Temperature range: -50°C and 135°C.
USP Class VI approval, clean room production according to ISO 10993-5 and ISO 10993-4 standard.
$ 38.96
Regular Price
$ 51.94
Discount 25%
More Information
Article no
TPE135-.5-1.5
Tube length (m)
15
Tubing size (OD)
3/32" (2.4mm)
Material
TPE Shore A 68
Shore
68
Tube size (ID)
1/32" (0.8mm)
Tubing size (WT)
1/32" (0.8mm)
Without PVC, DEHP phthalates or other plasticizers.
These tubing are non-animal derived, flexible and offer low gas and oxygen permeability and have very low extractable/leachable properties.
Shore A 68 TPE tubing meets a wide range of pharmaceutical, medical and bioprocessing applications.
Test-Data of TPE-135 tubing
Part no.
ID / OD / WALL
Primary Failure 2022
Working Pressure (bar)
Operating Pressure (bar)
Minimum Bend Radius (mm)
TPE135-1.85-3.45mm
1.85mm / 3.45mm / 0.80mm
8.54
2.85
2.14
3.3
TPE135-2mm-4mm
2mm / 4mm / 1mm
8.54
2.85
2.14
5.08
TPE135-4mm-6mm
4mm / 6mm / 1mm
5.28
1.76
1.32
12.7
TPE135-4mm-7mm
4mm / 7mm / 1.5 mm
7.14
2.38
1.79
7.87
TPE135-5mm-8mm
5mm / 8mm / 1.5mm
6.95
2.32
1.74
7.87
TPE135-.5-1.5
1/32" / 3/32" / 1/32"
13.54
4.51
3.39
1.52
TPE135-1-2
1/16" / 1/8" / 1/32"
8.99
3
2.25
1.52
TPE135-1.5-2.5
3/32"/ 5/32" / 1/32"
6.94
2.31
1.74
4.83
TPE135-2-3
1/8" / 3/16" / 1/32"
4.81
1.6
1.2
7.62
TPE135-2-4
1/8" / 1/4" / 1/16"
9.41
3.14
2.35
5.08
TPE135-3-4
3/16" / 1/4" / 1/32"
3.69
1.23
0.92
15.24
TPE135-3-5
3/16" / 5/16" /1/16"
6.36
2.12
1.59
10.16
TPE135-3-6
3/16" / 3/8" / 3/32"
9.18
3.06
2.3
7.62
TPE135-4-6
1/4" / 3/8" /1/16"
5.01
1.67
1.25
20.32
TPE135-4-7
1/4" / 7/16" / 3/32"
6.61
2.2
1.65
22.86
TPE135-4-8
1/4" / 1/2" / 1/8"
7.98
2.66
2
12.7
TPE135-5-7
5/16" / 7/16" / 1/16"
4.35
1.45
1.09
25.4
TPE135-5-8
5/16" / 1/2" / 3/32"
6.66
2.22
1.67
16
TPE135-6-8
3/8" / 1/2" / 1/16"
3.95
1.32
0.99
45.72
TPE135-6-9
3/8" / 9/16" / 3/32"
5.46
1.82
1.37
22.35
TPE135-6-10
3/8" / 5/8" / 1/8"
6.03
2.01
1.51
25.4
TPE135-8-12
1/2" / 3/4" / 1/8"
5.35
1.78
1.34
35.56
TPE135-10-14
5/8" / 7/8" / 1/8"
4.24
1.41
1.06
45.72
TPE135-12-14
3/4" / 7/8" / 1/16"
2.1
0.7
0.53
139.7
TPE135-12-16
3/4" / 1" / 1/8"
3.87
1.29
0.97
71.12
TPE135-12-20
3/4" / 1 1/4" / 1/4"
5.64
1.88
1.41
44.45
TPE135-16-20
1" / 1 1/4" / 1/8"
2.3
0.77
0.58
152.4
