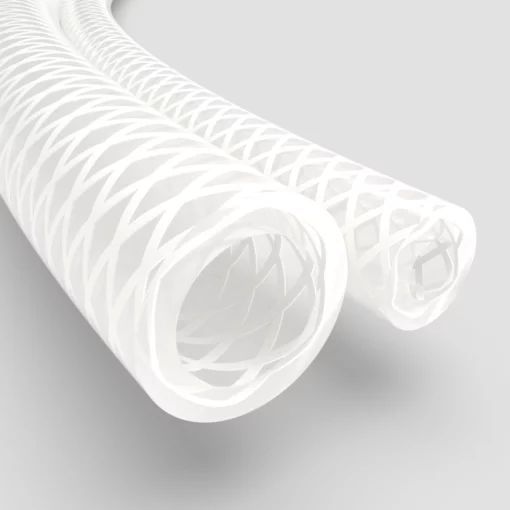

TPEG135-2-6-15 Braided Reinforced Tubing 1/8″ ID x 3/8″ OD - 4.5m
- Shore-A 68
- High pressure rating
- Very good bio compatibility
- Temperature range: -80°C to 135°C
- Sterilizable (autoclave, EtO sterilization, gamma sterilization 45 kGy, withstands multiple autoclaving cycles)
- low protein binding
- low gas and oxygen permeability
- low extractability and leachability
- ultra-pure medicinal quality
- Material certificate and lot traceability
Max. working pressure at 20°C*: 11,16 bar
about 3-4 weeks
Only %1 left
Article no
TPEG135-2-6-15
$ 62.15
More Information
Article no |
TPEG135-2-6-15 |
Tube length (m) |
4.5 |
Tubing size (OD) |
3/8" (9.5mm) |
Material |
TPE braided reinforced |
Shore |
68 |
Tube size (ID) |
1/8" (3.2mm) |
Tubing size (WT) |
1/8" (3.2mm) |
Approvals and standards
- USP Class VI biocompatibility requirements
- USP 661 compliant
- cytotoxicity criteria
- CFR Title 21 Section 177.2600
- ISO 10993 (part 4 and 5)
- Clean room manufactured
- Fully lot traceable
- Non-animal derived − BSE/TSE compliant
Technical data of the braided reinforced TPE tubing
Article No.
|
ID
|
OD
|
WT
|
Minimum Bend Radius (mm)
(unsupported)
|
Max. working pressure
at 20°C (bar)*
|
TPEG135-2-6
|
1/8"
|
3/8"
|
1/8"
|
6.35
|
11.16
|
TPEG135-4-8
|
1/4"
|
1/2"
|
1/8"
|
11.18
|
8.00
|
TPEG135-6-10
|
3/8"
|
5/8"
|
1/8"
|
22.35
|
6.55
|
TPEG135-8-12
|
1/2"
|
3/4"
|
1/8"
|
28.70
|
7.58
|
TPEG135-10-16
|
5/8"
|
1"
|
1/8"
|
38.10
|
8.14
|
TPEG135-12-18
|
3/4"
|
1 1/8"
|
3/16"
|
50.80
|
6.20
|
TPEG135-16-22
|
1"
|
1 3/8"
|
3/16"
|
63.50
|
3.86
|
* Working pressure is determined using a 4:1 safety factor of the maximum burst pressure per ASTM D1599
