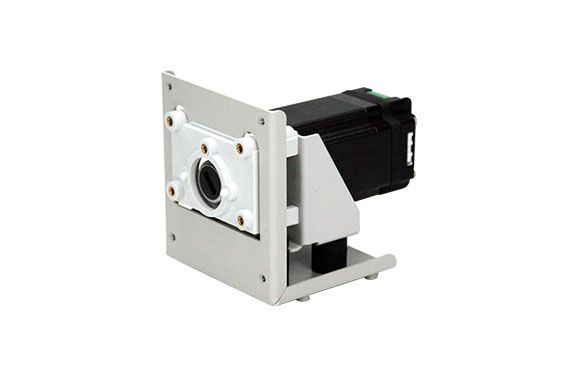

T100-SC02-01 Precise peristaltic pump with integrated driver RS485 100 rpm
- Speeds: 0-100rpm
- Resolution: 0.1rpm
- Control: RS485
about 2-3 weeks
Only %1 left
Article no
T100-SC02-01
$ 168.00
| Parameters | T100-SC02-01 |
| Motor type | Stepper motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | ≤500mL/min |
| Pumphead model | No (to be ordered separately) |
| Pump speed | ≤100rpm |
| Control mode | RS485，Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed，start/stop，direction，prime status，via RS485 |
| Dimensions(L x W x H) | 121x102x118(mm) |
| Installation method | Panel mount or soleplate mount |
| Power supply | DC24V/15W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
| Weight | 1.29kg |
