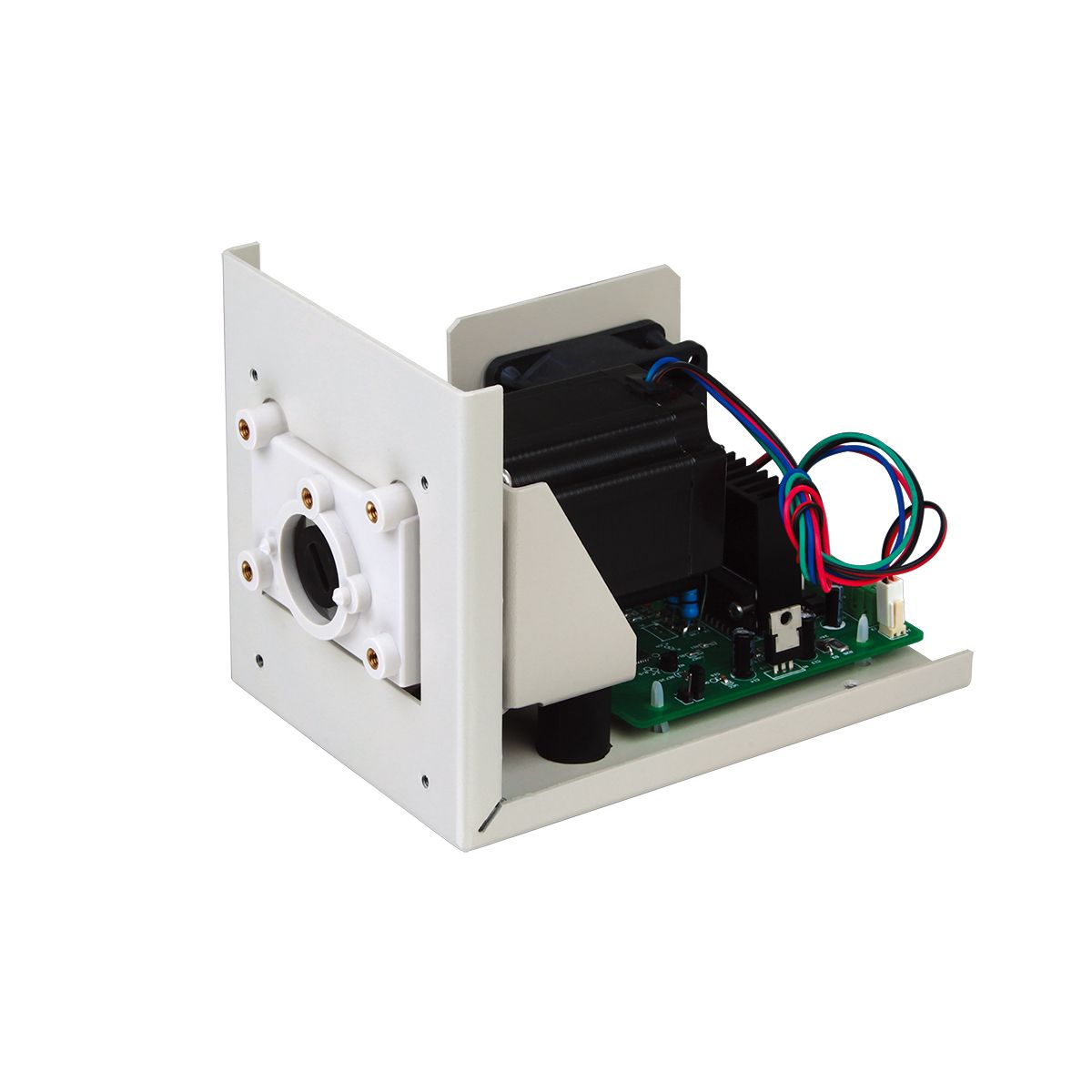

T600-SC Precise peristaltic pump 600 rpm - RS485 communication

Speed

≤ 600rpm

Speed resolution

1rpm

*Direction control

Direction is controlled by external switch signal. CW when switch is open, CCW when switch is closed.

*Start/stop control

Start/stop is controlled by external switch signal. Pump runs when switch is open, stops when switch is closed.

*BCD dial switch speed control

The speed is divided into 15 grades.

*External speed control (optional)

4–20 mA, 0–5 V, 0–10 V, 0–10 kHz

**Communication pump ID

Pump ID range is 1-30

**Bit rate

1200bps or 9600bps

Dimension(L x W x H)

185 x 125 x 136 mm

Relative humidity

< 80%

Operating temperature

0°C - 40°C

Power supply

24 VDC

Power consumption

80 W

Weight

1,63 kg

Note

Items with * are only available for products with dial switch and external speed control signal.
Items with ** are only available for product with RS485.
