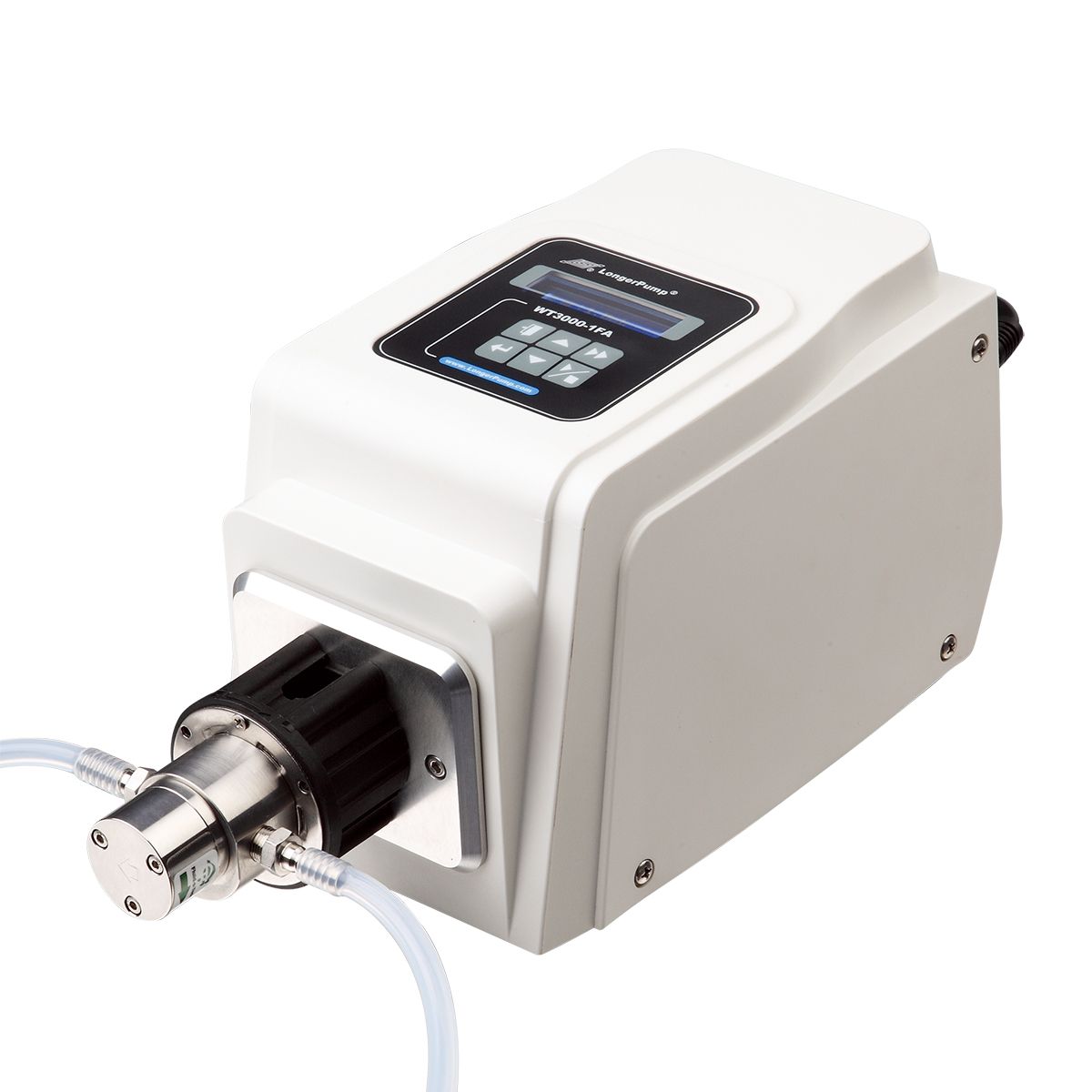

WT3000-1FA Compact Micro Gear Pump - batch dispensing and filling - up to 8 bar
Suitable to dispense viscous, high temperature fluids or transfer the fluids in pressure condition (up to 8 bar on MG204 & MG209)
- Compact size, pulsation-free
- Flow rate function: Deliver the liquid according to the set flow rates.
- Dispensing function: Dispensing volume, cipy number and pause time can be set.
- Calibration function: The flow rates and the dispesning volume can be calibrated to increase the accuracy.
- 4 digits LED displays the speed of the pump, two LED lights indicate the running status and external control status.
- Membrane keypad control
- Prime function for fast filling and emptying
- The start/stop and speed of the pump can be controlled through external control port
- Store the running parameters automatically
- Running directions: Clockwise only
Max. Pressure:
- 8 bar - Pump head MG204
- 8 bar - Pump head MG209
- 3 bar - Pump head MG213
about 2-3 weeks
Article no
WT3000-1FA
$ 1,545.60
| Speed | 300-3000 rpm |
| Speed accuracy | ±1.0% |
| Speed resolution | 1.0 rpm |
| Communication interface | RS485 |
| Copy No. | 0-9999, "0" means unlimited cycle |
| Pause time | 1s to 999 hours, resolution: 0.1s |
| Flow rate calibration time | 30-1800 seconds, resolution: 1s |
| Diameter of particle in liquid | ≤ 10μm |
| Fluids viscosity | ≤ 200 cst |
| External control | Flow rate control (4-20 mA, 0.5-5V, 1.0-10V, 1.0-10KHz), start/stop control. |
| External output control | 1.25-12.5kHz frequency output corresponding to 300-3000 rpm; start/stop status output |
| Power supply | AC 90-130V/176-264V, 50Hz/60Hz |
| Power consumption | ≤ 50 W |
| Operating condition | Temperature 0 to 40°C, Relative humidity <90% (no dew) |
| Drive weights | 2.83 kg |
| Drive dimensions (L x W x H) | 232 x 142 x 149 (mm) |
| IP rating | IP31 |
