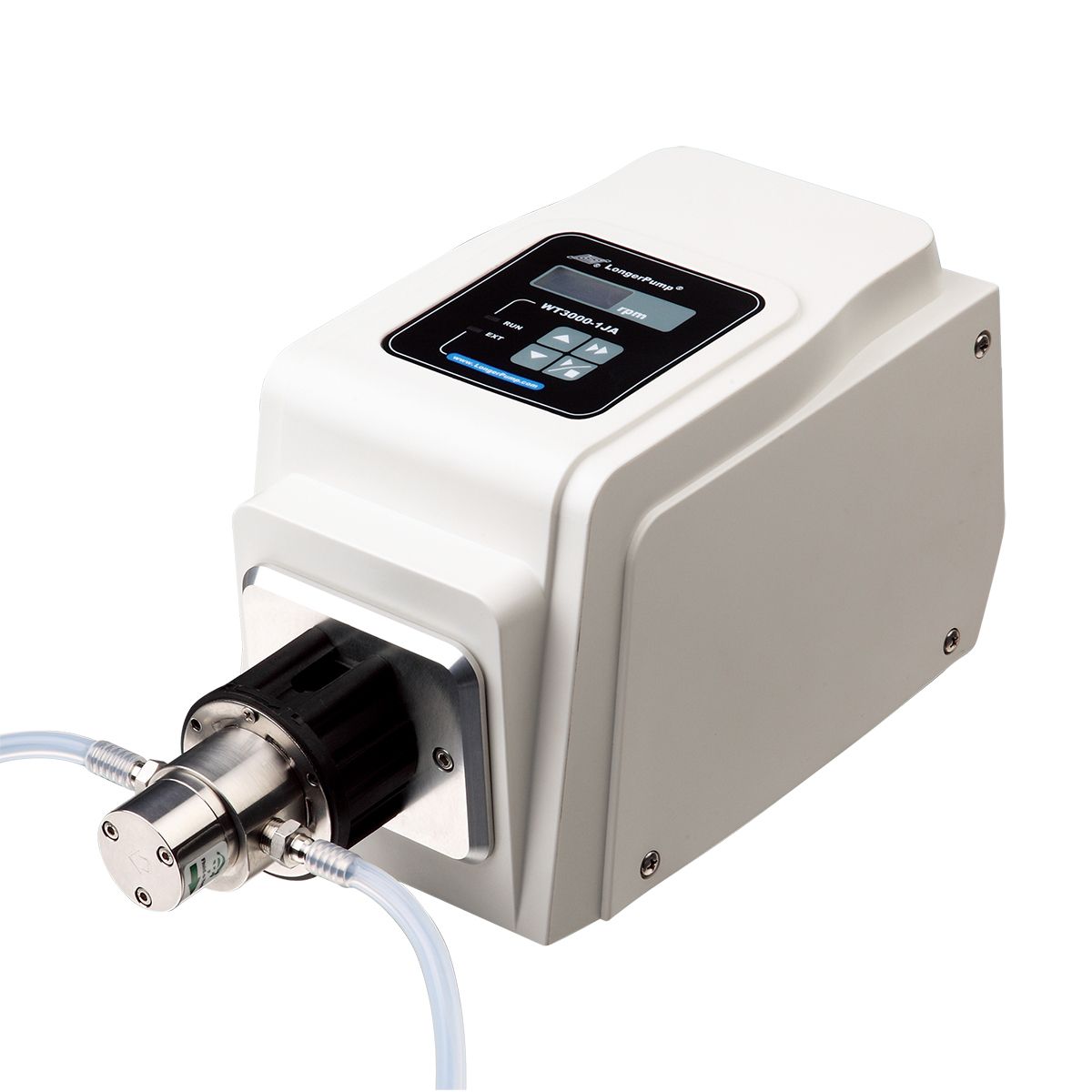

WT3000-1JA Compact Micro Gear Pump - continuous fluid transferring - up to 8 bar
Suitable to transfer viscous, high temperature fluids or transfer the fluids in pressure condition (up to 8 bar on MG204 & MS209)
- Compact size, pulsation-free
- 4 digits LED displays the speed of the pump, two LED lights indicate the running status and external control status.
- Membrane keypad control
- Prime function for fast filling and emptying
- The start/stop and speed of the pump can be controlled through external control port
- Store the running parameters automatically
- Running directions: Clockwise only
Max. Pressure:
- 8 bar - Pump head MG204
- 8 bar - Pump head MG209
- 3 bar - Pump head MG213
about 2-3 weeks
Article no
WT3000-1JA
$ 1,101.24
| Speed | 300-3000 rpm |
| Speed accuracy | ±1.0% |
| Speed resolution | 1.0 rpm |
| Communication interface | RS485 |
| Diameter of particle in liquid | ≤ 10μm |
| Fluids viscosity | ≤ 200 cst |
| External control | Start/stop control, speed control (0.5-5V, 1-10 V, 4-20 mA, 1-10 kHz optional) |
| Power supply | AC 90-130V/176-264V, 50Hz/60Hz |
| Power consumption | ≤ 50 W |
| Operating condition | Temperature 0 to 40°C, Relative humidity <90% (no dew) |
| Drive weights | 2.83 kg |
| Drive dimensions (L x W x H) | 232 x 142 x 149 (mm) |
| IP rating | IP31 |
