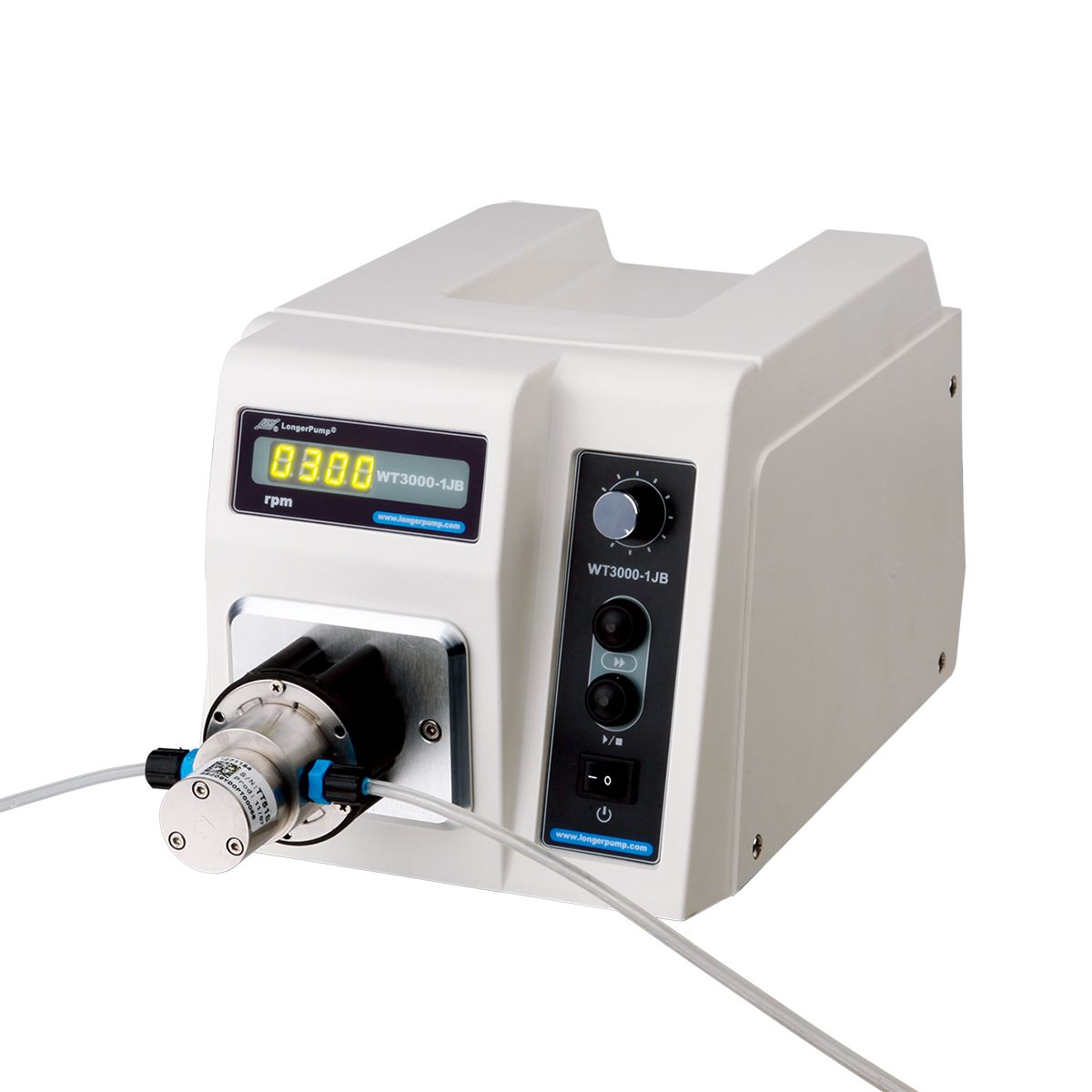

WT3000-1JB Micro Gear Pump - continuous fluid transferring - up to 14 bar
Suitable to transfer viscous, high temperature fluids or transfer the fluids in pressure condition (up to 14 bar with pump head MS204)
- Compact size, noiseless, pulsation-free
- 4 digits LED displays the speed of the pump
- Combine the knob and rotary encoder switch to make the operation easy
- Prime function for fast filling and emptying
- The start/stop and speed of the pump can be controlled through external control port
- Store the running parameters automatically
- Running directions: Clockwise only
Max. Pressure:
- 14 bar - Pump head MS204
- 9 bar - Pump head MS209
- 8 bar - Pump head MS213
on stock
Article no
WT3000-1JB
Special Price
$ 1,385.25
Regular Price
$ 1,539.16
Discount 10%
| Speed | 300-3000 rpm |
| Speed accuracy | ±1.0% |
| Speed resolution | 1.0 rpm |
| Communication interface | RS485 |
| Diameter of particle in liquid | ≤ 10μm |
| Fluids viscosity | ≤ 200 cst |
| External control | Start/stop control, speed control (0.5-5V, 1-10 V, 4-20 mA, 1-10 kHz optional) |
| Power supply | AC 220/110V± 20%, 50Hz/60Hz |
| Power consumption | ≤ 150 W |
| Operating condition | Temperature 0 to 40°C, Relative humidity <90% (no dew) |
| Drive weights | 5.1 kg |
| Drive dimensions (L x W x H) | 290 x 207 x 180 (mm) |
| IP rating | IP31 |
