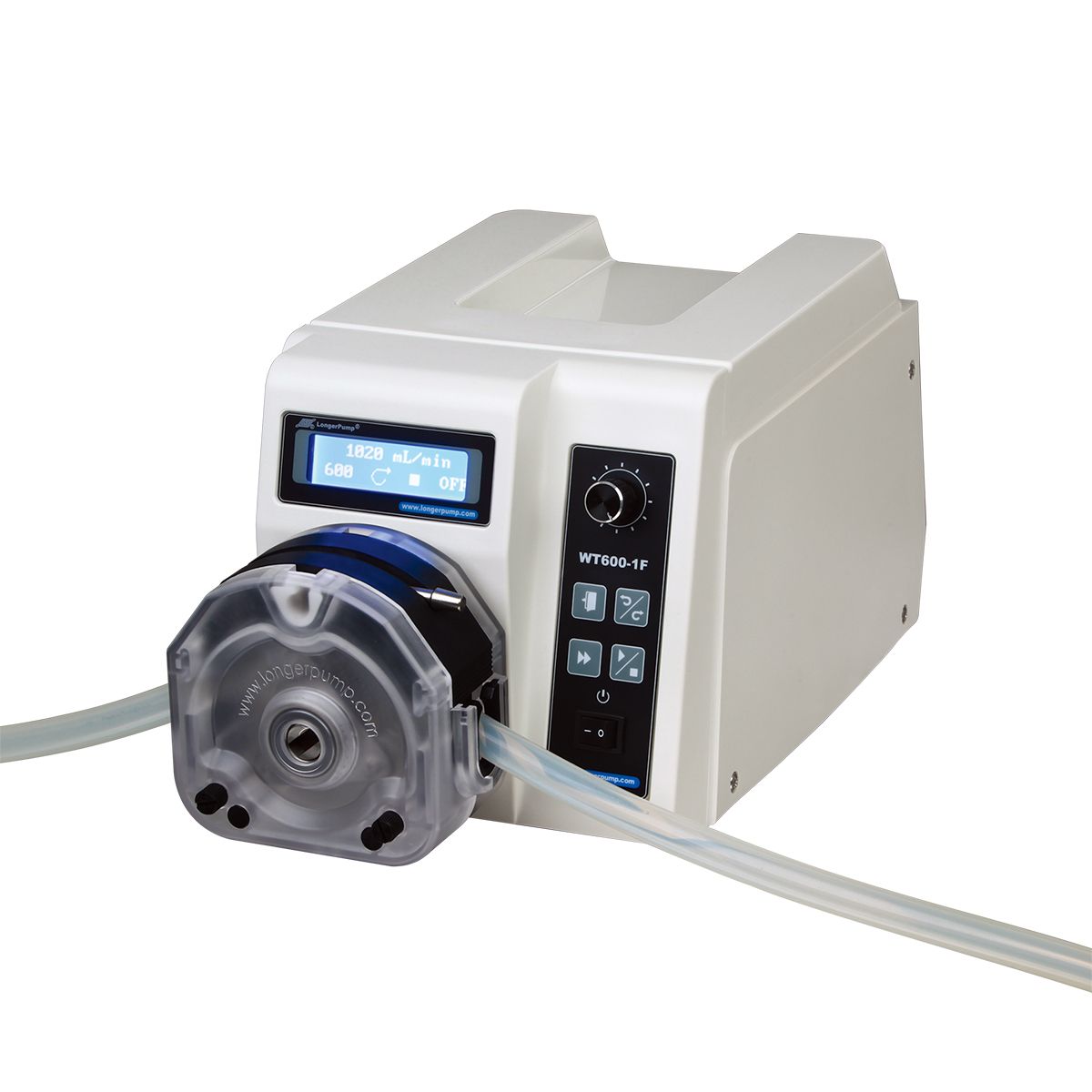

WT600-1F Dispensing peristaltic pump 0.7 ml/min to 6000 ml/min and 2 pump heads
Flow rates：up to 6000 ml/min per head
Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Max. Number of pump heads：2
Prime key for fast filling and emptying
about 2-3 weeks
Article no
WT600-1F
$ 2,189.60
Tubing
|
Pump head |
Number |
Inner-diameter |
Wall-thickness |
max. Flow rate |
|---|---|---|---|---|
|
YZ1515x, YZII15 (up to 4) |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0.8 - 7.9 mm |
1.6, 1.7 mm |
4 ml/min - 2200 ml/min |
|
YZ2515x (up to 4) |
15#, 24# |
4.8, 6.4 mm |
2.4 mm |
100 ml/min - 1600 ml/min |
|
YZII25 (up to 2) |
15#, 24#, 35#, 36# |
4.8 - 9.6 mm |
2.4 mm |
100 ml/min - 3000 ml/min |
|
DG15-24 |
16#, 25#, 17# |
3.2 - 6.4 mm |
1.6 mm |
50 ml/min - 1800 ml/min |
|
KZ25 |
15# 24# 35# 36# |
4.8 - 9.6 mm |
2.4 mm |
6000 ml/min |
Specifications pump system
|
Flow rates |
up to 6000 ml/min |
|
Speed |
10 to 600 rpm, reversible |
|
Speed precision |
1 rpm |
|
Control mode |
Control panel |
|
Display |
LCD for running state |
|
Dispensing volume |
0.1 mL to 99.9 L |
|
Copy number |
0 to 999, 0 means unlimited cycle. |
|
Pause time |
1s-999 s (0.1s resolution within the time of 0.1s-100s，1s resolution within the time of 100s-999s) |
|
Communication interface |
RS485 |
|
External control |
Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz |
|
Speed output |
166.7Hz - 10kHz corresponding to 10-600 rpm |
|
Power supply |
AC 220V±20% |
|
Power consumption |
≤ 140 W |
|
Operating condition |
Temperature 0 to 40°C |
|
Relative humidity |
< 80% |
|
Dimensions (L×W×H) |
285 x 207 x 180 (mm) |
|
Drive weight |
5.20 kg |
|
IP rating |
IP 31 |
