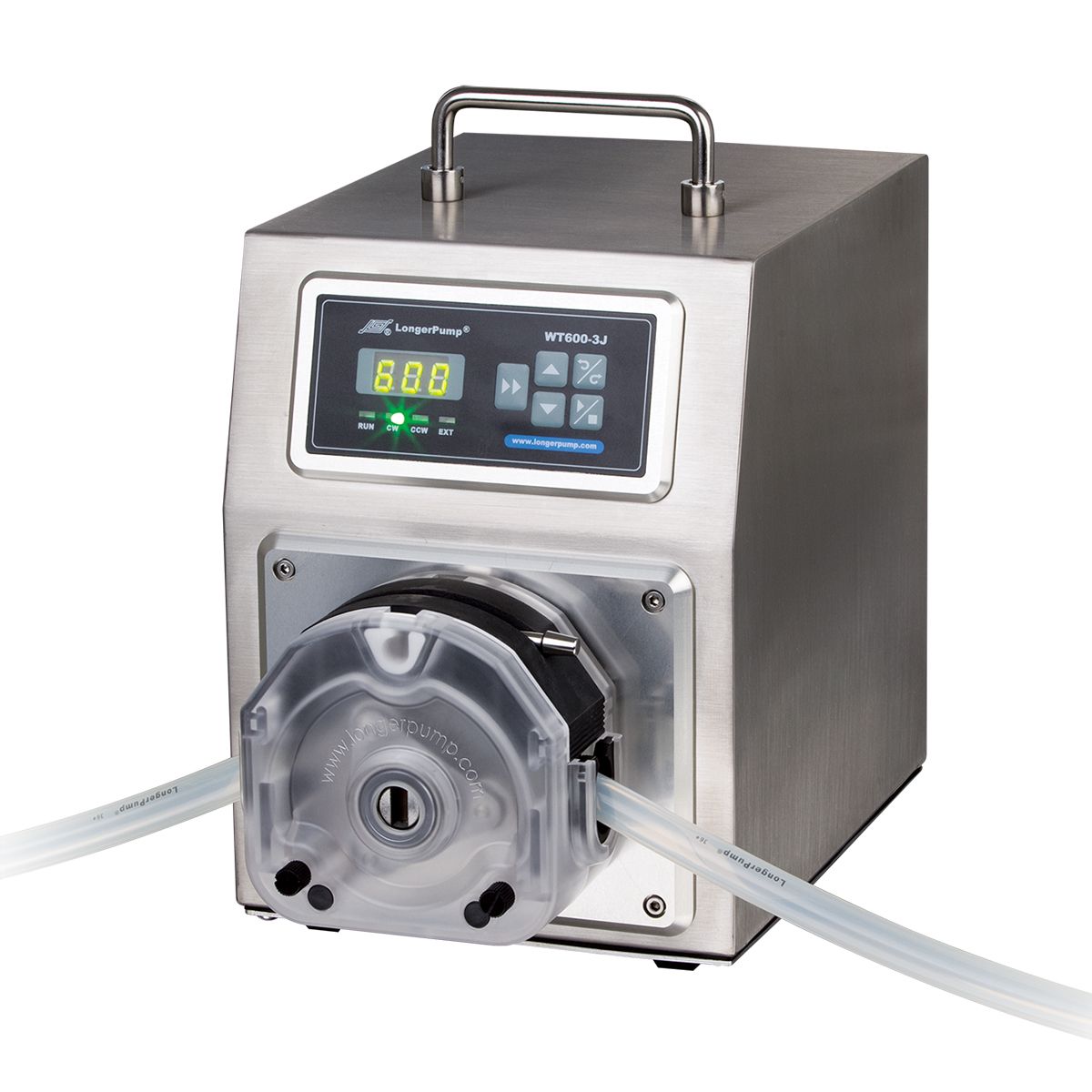

WT600-3J-A Laboratory peristaltic pump IP55 up to 6000 ml/min and 4 pump heads - 0.5-5V External Control
High IP rating (IP 55): suitable for moisture and dust working condition.
Flow rates：up to 6000 ml/min per head
Max. Number of pump heads：4 (Brushless DC motor, high output torque)
Prime key for fast filling and emptying
Memory function: Store working status and machine ID.
Three digital LED display the speed of pump
Communication function: the pump could be controlled by computer through RS485 interface.
External control input: Control the speed, start/stop and direction of the pump
about 2-3 weeks
Only %1 left
Article no
WT600-3J-A
$ 2,492.28
Regular Price
$ 2,769.20
Discount 10%
Tubing
|
Pump head |
Number |
Inner-diameter |
Wall-thickness |
max. Flow rate |
|---|---|---|---|---|
|
YZ1515x, YZII15 (up to 4) |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
0.8 - 7.9 mm |
1.6, 1.7 mm |
4 ml/min - 2200 ml/min |
|
YZ2515x (up to 4) |
15#, 24# |
4.8, 6.4 mm |
2.4 mm |
100 ml/min - 1600 ml/min |
|
YZII25 (up to 2) |
15#, 24#, 35#, 36# |
4.8 - 9.6 mm |
2.4 mm |
100 ml/min - 3000 ml/min |
|
DG15-24 |
16#, 25#, 17# |
3.2 - 6.4 mm |
1.6 mm |
50 ml/min - 1800 ml/min |
|
KZ25 |
15# 24# 35# 36# |
4.8 - 9.6 mm |
2.4 mm |
34 ml/min - 6000 ml/min |
Specifications pump system
|
Flow rates |
up to 6000 ml/min |
|
Speed |
60 to 600 rpm, reversible |
|
Speed precision |
1 rpm |
|
Speed control |
Rotary encoded switch |
|
Display |
3-digit LED displays current speed |
|
Communication interface |
RS485 |
|
External control |
Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz |
|
Power supply |
AC 176 - 264V 50/60Hz |
|
Power consumption |
≤200 W |
|
Operating condition |
Temperature 0 to 40°C |
|
Relative humidity |
< 80% |
|
Dimensions (L×W×H) |
273 x 190 x 272 (mm) |
|
Drive weight |
7.40 kg |
|
IP rating |
IP 55 |
