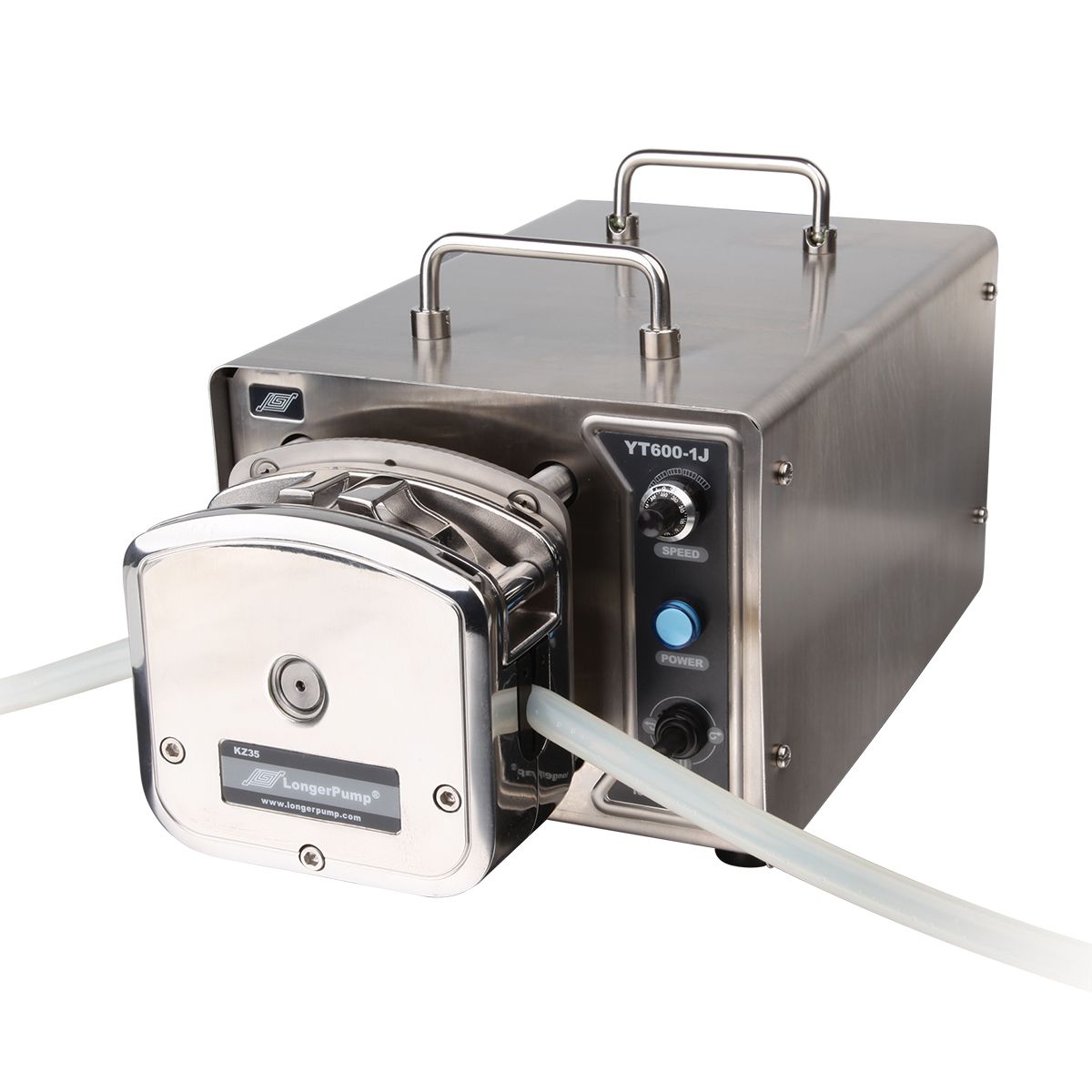

YT600-1J Industrial peristaltic pump with stainless steel housing - IP54 - up to 11l/min / Head (max. 2 heads)
YT600-1J peristaltic pump can provide a flow range of 600 to 11000 (mL/min) each channel.
The speed can be adjusted manually or controlled via an external control interface.
It is driven by a high-power DC motor, and its electrical part meets the requirements of industrial protection grade IP54.
It has certain dustproof and waterproof capabilities and can drive double pump heads.
about 2-3 weeks
Article no
YT600-1J
$ 1,880.48
| Parameters | YT600-1J |
| Speed range | 60~600(rpm) |
| Speed display resolution | Digital knob 0.01X600=6(rpm) |
| Applicable pump head | YZ35, KZ35 series |
| Manual control function | Speed control, direction control, start-stop control |
| Cooling method | Forced air cooling |
| Dimensions | 380x236x214 (mm) |
| Applicable power supply | AC 220V(+10%) 50/60Hz |
| Operating temperature | 0°C~40°C |
| Working environment humidity | <80% |
| Protection level | IP54 |
| Weight | 20kg |
